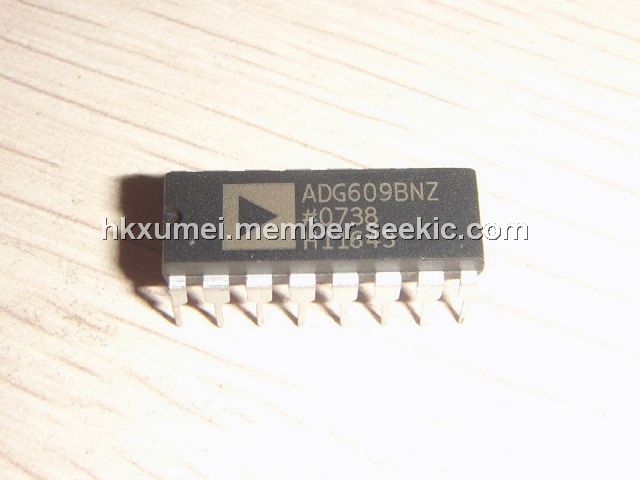

ADG609BNZ

DIP16，ADG609BNZ, 3 V/5 V, 4/8 Channel, Analog Multiplexer, +0.3 V to –6.5 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.30~1.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.30~1.80

PartNumber:: ADG609BNZ

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Kate Fan's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-08

From Other Seller

Part Number:ADG609BNZ
US $1.30 - 1.80
LM285M-2.5

US $0.16 - 0.25 / Piece
(0) Remove
RTL8309SC

US $1.50 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

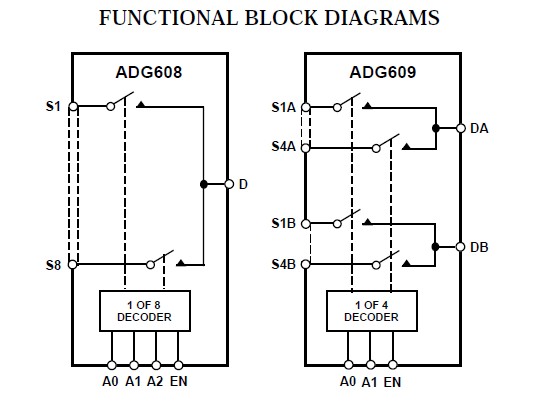

The ADG609BNZ is a monolithic CMOS analog multiplexer comprising eight single channels and four differential channels respectively, fully specified for ±5 V, +5 V and +3 V power supply. The ADG609BNZ switch is one of eight inputs to a common output as determined by the 3-bit binary address lines A0, A1 and A2. The ADG609BNZ switch one of four differential input to a common differential output as determined by the 2-bit binary address lines A0 and A1. An EN input on both devices is used to enable or disable the device. When disabled, all channels are switched OFF. All the address and enable inputs of the ADG609BNZ are TTL compatible over the full specified operating temperature range, making the parts suitable for bus-controlled systems such as data acquisition systems, process controls, avionics and ATEs since the TTL compatible address inputs simplify the digital interface design and reduce the board space requirements.

Parametrics

ADG609BNZ absolute maximum ratings: (1)VDD to VSS: +13 V; (2)VDD to GND: –0.3 V to +6.5 V; (3)VSS to GND: +0.3 V to –6.5 V; (4)Analog, Digital Inputs2: –0.3 V to VDD + 2 V; (5)or 20 mA, Whichever Occurs First; (6)Continuous Current, S or D: 20 mA; (7)Peak Current, S or D; (8)(Pulsed at 1 ms, 10% Duty Cycle Max): 40 mA; (9)Operating Temperature Range Industrial (B Version): –40℃ to +85℃; (10)Extended (T Version): –55℃ to +125℃; (11)Storage Temperature Range: –65℃ to +150℃; (12)Junction Temperature: +150℃; (13)Plastic DIP Package qJA, Thermal Impedance: 117℃/W; (14)Lead Temperature, Soldering (10 sec): +260℃.

Features

ADG609BNZ features: (1)+3 V, +5 V, 65 V Power Supplies; (2)VSS to VDD Analog Signal Range; (3)Low On Resistance (30 V max); (4)Fast Switching Times; (5)tON 75 ns max; (6)tOFF 45 ns max; (7)Low Power Dissipation (1.5 mW max); (8)Break-Before-Make Construction; (9)ESD > 5000 V as per Military Standard 3015.7; (10)TTL and CMOS Compatible Inputs.
