Product Summary
The EPCS64SI16N is a serial configuration device, which supports active serial configuration, and configuration data must be reloaded each time the device powers up, the system reconfigures, or when new configuration data is required. The EPCS64SI16N is a flash memory device with a serial interface that can store configuration data for FPGA device that support active serial configuration and reload the data to the device upon power-up or reconfiguration.
Parametrics
EPCS64SI16N maximum ratings: (1)Supply voltage: -0.6 to 40V; (2)DC input voltage: –0.6 to 4.0 V; (3)DC VCC or GND current: 15mA; (4)DC output current per pin: –25 to 25 mA; (5)Power dissipation: 54mW; (6)Storage temperature: -65 to 150℃; (7)Ambient temperature: -65 to 135 ℃; (8)Junction temperature: 135℃.
Features
EPCS64SI16N features: (1)Easy-to-use four-pin interface; (2)Low cost, low-pin count, and non-volatile memory; (3)Low current during configuration and near-zero standby mode current; (4)2.7-V to 3.6-V operation; (5)Enables the NiosR processor to access unused flash memory through AS memory interface; (6)Re-programmable memory with more than 100,000 erase/program cycles; (7)Write protection support for memory sectors using status register bits.

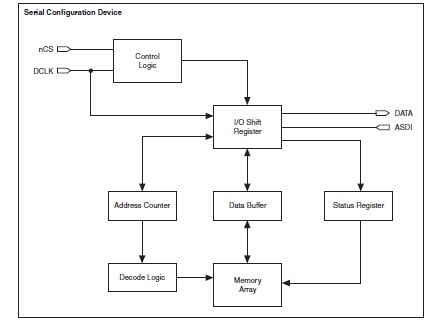

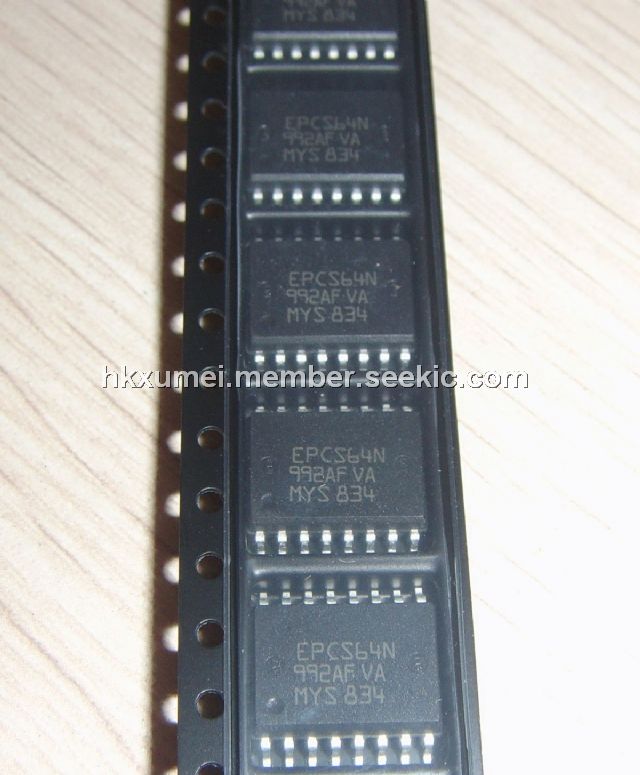

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
EPCS64SI16N |
Altera |
IC CONFIG DEVICE 64MBIT 16-SOIC |
Data Sheet |
|
|
|||||||
