Product Summary

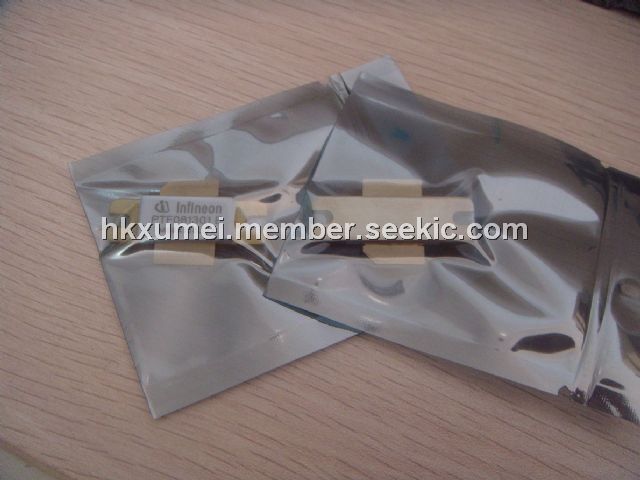

The PTF081301E is a 130-watt, internally-matched GOLDMOS FET intended for EDGE and CDMA applications in the 869 to 960 MHz bands. Thermally-enhanced packaging provides the coolest operation available. Full gold metallization ensures excellent device lifetime and reliability.

Parametrics

Maximum ratings: (1)Drain-Source Voltage, VDSS: 65 V; (2)Gate-Source Voltage, VGS: –0.5 to +12 V; (3)Junction Temperature, TJ: 200 ℃; (4)Total Device Dissipation, PD: 473 W; Above 25℃ derate by 2.70 W/℃; (5)Storage Temperature Range, TSTG: –40 to +150 ℃; (6)Thermal Resistance (TCASE = 70℃), RqJC: 0.37 ℃/W.

Features

Features: (1)Thermally-enhanced packages; (2)Broadband internal matching; (3)Typical EDGE performance: Average output power = 65 W; Gain = 18 dB; Efficiency = 40%; (4)Typical CW performance: Output power at P–1dB = 150 W; Gain = 17 dB; Efficiency = 55%; (5)Integrated ESD protection: Human Body Model, Class 1 (minimum); (6)Excellent thermal stability; (7)Low HCI drift; (8)Capable of handling 10:1 VSWR @ 28 V, 130 W (CW) output power.

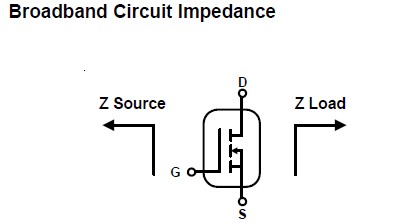

Diagrams
