Product Summary
The HBCS-1100 is a fully integrated module designed for optical reflective sensing. The HBCS-1100 contains a 0.178 mm (0.007 in.) diameter 700 nm visible LED emitter and a matched IC photodetector. A bifurcated aspheric lens is used to image the active areas of the emitter and the detector to a single spot 4.27 mm (0.168 in.) in front of the package. The reflected signal can be sensed directly from the photodiode or through an internal transistor that can be configured as a high gain amplifier. The applications of the HBCS-1100 include pattern recognition and verification,
object sizing, optical limit switching, tachometry, textile thread counting and defect detection, dimensional monitoring, line locating, mark, and bar code scanning, and paper edge detection.
Parametrics
HBCS-1100 absolute maximum ratings: (1)Storage Temperature, TS: -40 to +75℃; (2)Operating Temperature, TA: -20 to +70℃; (3)Lead Soldering Temperature 1.6 mm from Seating Plane: 260℃ max for 10 sec; (4)Average LED Forward Current, IF: 50 mA max; (5)Peak LED Forward Current, IFPK: 75 mA max; (6)Reverse LED Input Voltage, VR: 5 V max; (7)Package Power Dissipation, PP: 120 mW max; (8)Collector Output Current, IO: 8 mA max; (9)Supply and Output Voltage VD, VC, VE: -0.5 to 20 V; (10)Transistor Base Current, IB: 5 mA max; (11)Transistor Emitter Base Voltage, VEB: 0.5 V max.
Features
HBCS-1100 features: (1)Focused Emitter and Detector in a Single Package; (2)High Resolution-0.190 mm Spot Size; (3)700 nm Visible Emitter; (4)Lens Filtered to Reject Ambient Light; (5)TO-5 Miniature Sealed Package; (6)Photodiode and Transistor Output; (7)Solid State Reliability.

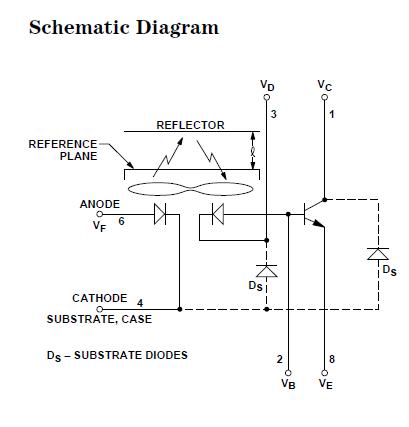

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 HBCS-1100 |
Avago Technologies |
Optical Switches, Reflective, with Phototransistor Output Sensor Barcode Sens or |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
HBCS-1100 |
Avago Technologies |
Optical Switches, Reflective, with Phototransistor Output Sensor Barcode Sens or |
Data Sheet |
Negotiable |
|
||||
|
