Product Summary
The AH0015D TTL/DTL compatible MOS analog switch features high speed with internal level shifting and driving. The package contains two monolithic integrated circuit chips: the MOS analog chip is similar to the MM450 type which consists of four MOS analog switch transistors; the second chip is a bipolar I.C. gate and level shifter. The AH0015D is available in hermetic dual-in-line package. The AH0015D is particularly suited for use in both military and industrial applications such as commutators in data acquisition systems, multiplexers, A/D and D/A converters, long time constant integrators, sample and hold circuits, modulators/demodulators, and other analog signal switching applications.
Parametrics
AH0015D absolute maximum ratings: (1)VCC Supply Voltage: 7.0V; (2)Vb Supply Voltage: -30V; (3)Va Supply Voltage: +30V; (4)Va/Vb Voltage Differential: 40V; (5)Logic Input Voltage: 5.5V; (6)Storage Temperature Range: -65℃ to +150℃; (7)Operating Temperature Range: -55℃ to +125℃; (8)Lead Temperature (Soldering, 10 sec): 300℃.
Features
AH0015D features: (1)Large analog voltage switching: ±10V; (2)Fast switching speed: 500 ns; (3)Operation over wide range of power supplies; (4)Low ON resistance: 200Ω; (5)High OFF resistance: 1011Ω; (6)Analog signals in excess of 25 MHz; (7)Fully compatible with DTL or TTL logic; (8)Includes gating and level shifting.

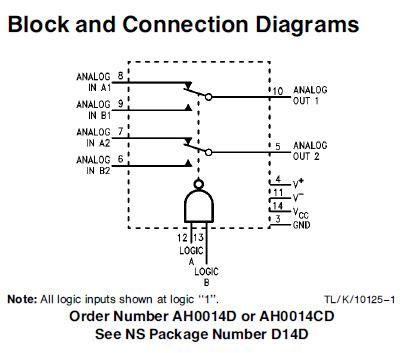

Diagrams
 |
