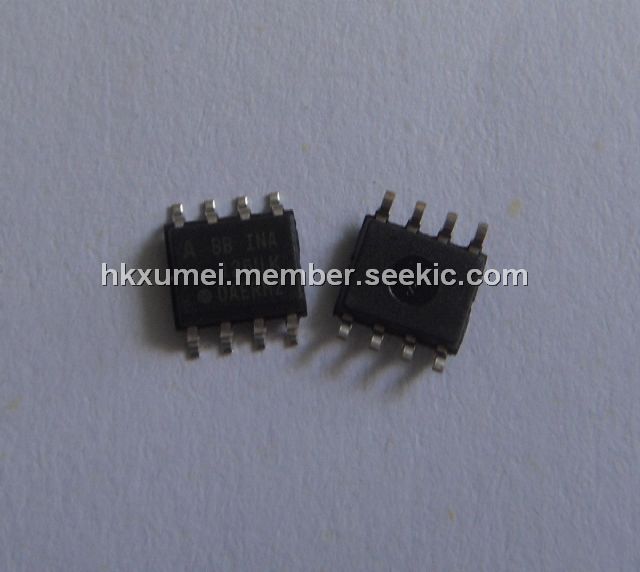

Product Summary

The INA126UA is a precision instrumentation amplifier for accurate, low noise differential signal acquisition. Their two-op-amp design provides excellent performance with very low quiescent current (175μA/channel). This combined with a wide operating voltage range of ±1.35V to ±18V, makes them ideal for portable instrumentation and data acquisition systems. Gain can be set from 5V/V to 10000V/V with a single external resistor. Laser trimmed input circuitry of the INA126UA provides low offset voltage (250μV max), low offset voltage drift (3μV/℃ max) and excellent common-mode rejection. Single version package options of the INA126UA include 8-pin plastic DIP, SO-8 surface mount, and fine-pitch MSOP-8 surface-mount. Dual version is available in the space-saving SSOP-16 finepitch surface mount, SO-16, and 16-pin DIP. All are specified for the –40℃ to +85℃ industrial temperature range.

Parametrics

INA126UA absolute maximum ratings: (1)Power Supply Voltage, V+ to V–: 36V; (2)Input Signal Voltage(2): (V–)–0.7 to (V+)+0.7V; (3)Input Signal Current(2): 10mA; (4)Output Short Circuit: Continuous; (5)Operating Temperature: –55℃ to +125℃; (6)Storage Temperature: –55℃ to +125℃; (7)Lead Temperature (soldering, 10s): +300℃.

Features

INA126UA features: (1)Low quiescent current: 175μA/chan.; (2)Wide supply range: ±1.35V to ±18V; (3)Low offset voltage: 250μV max; (4)Low offset drift: 3μV/℃ max; (5)Low noise: 35nV/√Hz; (6)Low input bias current: 25nA max; (7)8-PIN DIP, SO-8, MSOP-8 surface- mount. Dual: 16-Pin DIP, SO-16, SSOP-16.

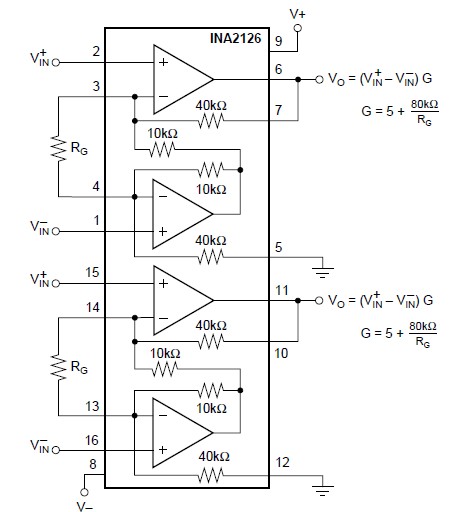

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
INA126UA
INA126UA
Texas Instruments
Instrumentation Amplifiers Micropower Single & Dual Versions
Data Sheet
0-1: $1.83
1-25: $1.67
25-100: $1.34
100-250: $1.16
INA126UA/2K5
INA126UA/2K5
Texas Instruments
Instrumentation Amplifiers Micropower Single & Dual Versions
Data Sheet
0-1: $1.78
1-25: $1.45
25-100: $1.30
100-250: $1.11
INA126UAG4
INA126UAG4
Texas Instruments
Instrumentation Amplifiers Micropower Single & Dual Versions
Data Sheet
0-1: $1.86
1-25: $1.52
25-100: $1.34
100-250: $1.27
INA126UA/2K5E4
INA126UA/2K5E4
Texas Instruments
Instrumentation Amplifiers Micropower Single & Dual Versions
Data Sheet
0-1860: $0.81
1860-2000: $0.78
2000-2500: $0.78
2500-5000: $0.75
