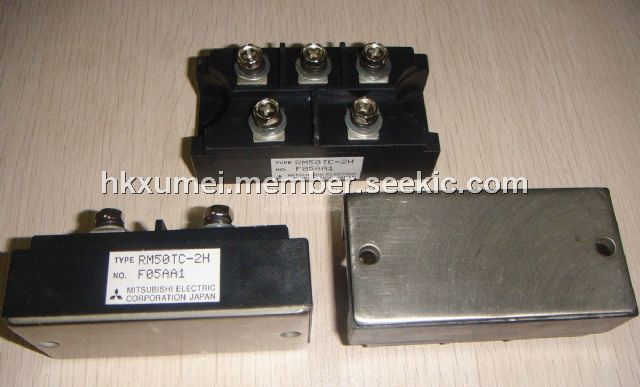

Product Summary

The RM50TC-2H is a diode module. The applications of the device include AC motor controllers , DC motor controllers, Battery DC power supplies, and DC power supplies for control panels, and other general DC power equipment.

Parametrics

RM50TC-2H absolute maximum ratings: (1)VRRM, Repetitive peak reverse voltage: 400V; (2)VRSM, Non-repetitive peak reverse voltage: 480V; (3)Ea, Recommended AC input voltage: 110V.

Features

RM50TC-2H features: (1)IO DC output current: 100A; (2)VRRM Repetitive peak reverse voltage: 400/800/1200/1600V; (3)3 phase bridge; (4)Insulated Type; (5)UL Recognized: Yellow Card No. E80276 (N) File No. E80271.

Diagrams

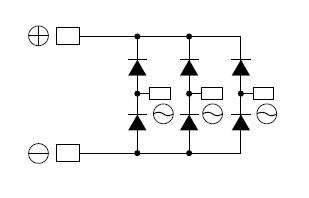

RM50TC-2H circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
RM50TC-2H
RM50TC-2H
Other

Data Sheet
Negotiable
