Product Summary
The LM340LAZ-12 is a three terminal positive regulator. The device is available with several fixed output voltages making them useful in a wide range of applications. The LM340LAZ-12 is an improved version with a tighter output voltage tolerance (specified over the full military temperature range), higher ripple rejection, better regulation and lower quiescent current. When used as a zener diode/resistor combination replacement, the LM340LAZ-12 usually results in an effective output impedance improvement of two orders of magnitude, and lower quiescent current. The regulator LM340LAZ-12 can provide local on card regulation, eliminating the distribution problems associated with single point regulation.
Parametrics
LM340LAZ-12 absolute maximum ratings: (1)Input Voltage: 35V; (2)Internal Power Dissipation: Internally Limited; (3)Operating Temperature Range: 0 to 70℃; (4)Maximum Junction Temperature: 150℃; (5)Storage Temperature Range: -65 to 150℃; (6)Lead Temperature (Soldering, 10 sec.): 230℃.
Features
LM340LAZ-12 features: (1)Line regulation of 0.04%/V; (2)Load regulation of 0.01%/mA; (3)Output voltage tolerances of ±2% at Tj = 25℃ and ±4% over the temperature range; (4)Output current of 100 mA; (5)Internal thermal overload protection; (6)Output transistor safe area protection; (7)Internal short circuit current limit; (8)Available in metal TO-39 low profile package.

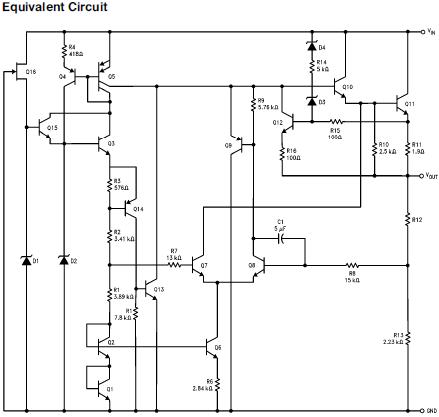

Diagrams
