Product Summary

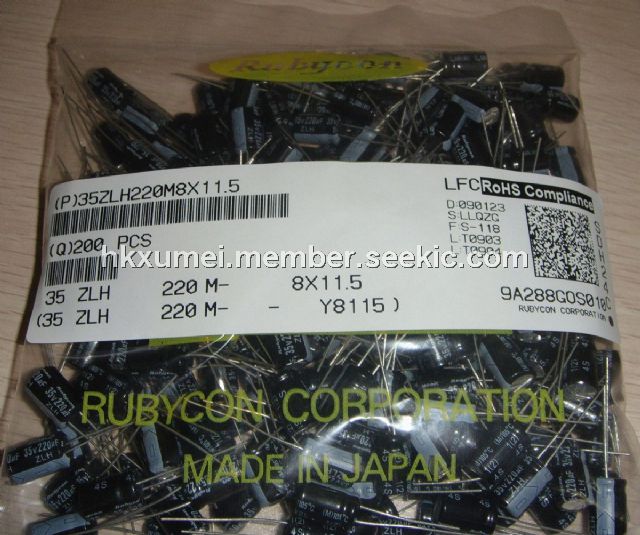

The 35ZLH220M8X11.5 is a miniature aluminum electrolytic capacitor. The device is long life and low impedance.
Parametrics
35ZLH220M8X11.5 absolute maximum ratings: (1)category temperature range: -40 to 150℃; (2)rated voltage range: 6.3 to 100V DC; (3)capacitance tolerance: ±20% (20℃, 120Hz); (4)leakage current (max): 0.01CV or 3μA.
Features
35ZLH220M8X11.5 features: (1)Achieved endurance improvement and miniaturization of ZL series, as well as high frequency impedance reduction; (2)Load Life : 105℃ 6000~10000hours; (3)RoHS compliance.

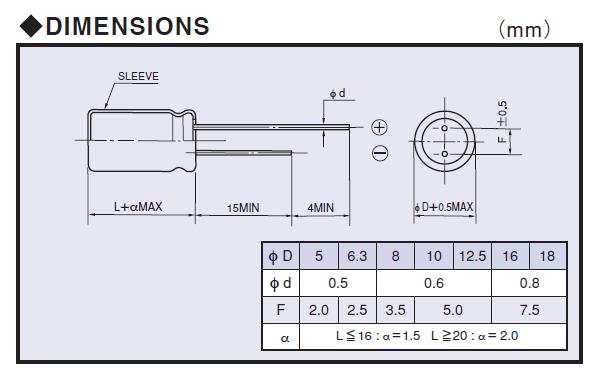

Diagrams
 |
 35ZL56MEFCTA8X7 |
|
CAP ALUM 56UF 35V 20% RADIAL |
Data Sheet |
|
|
||||||
|
35ZL680MEFC12.5X20 |
|
CAP ALUM 680UF 35V 20% RADIAL |
Data Sheet |
|
|
||||||
|
35ZL680MEFCG412.5X20 |
|
CAP ALUM 680UF 35V 20% RADIAL |
Data Sheet |
|
|
||||||
|
35ZLG1000MEFC12.5X25 |
|
CAP ALUM 1000UF 35V 20% RADIAL |
Data Sheet |
|
|
||||||
|
35ZLG1000MEFCG412.5X25 |
|
CAP ALUM 1000UF 35V 20% RADIAL |
Data Sheet |
|
|
||||||
|
35ZLG10MEFC5X7 |
|
CAP ALUM 10UF 35V 20% RADIAL |
Data Sheet |
|
|
||||||
