Product Summary
The MAX561CAI+ is a 3.3V transceiver with two EIA/TIA-562receivers active in shutdown. It guarantees interoperability with RS-232 interfaces. The MAX561CAI+ is guaranteed to operate with a +3.0V power supply at a 20kbits/sec data rate while maintaining ±3.7V EIA/TIA-562 signal levels. The product includes four line drivers, five receivers, a shutdown mode, and a receiver-enable input. The applications of the MAX561CAI+ include: laptop computers, palmtop computers, notebook computers and so on.
Parametrics
MAX561CAI+ maximum ratings: (1)VCC: -3.0 to +6V; (2)V+: (VCC-O.3v) TO +14V; (3)Input voltage: TIN=0.3 to (VCC+0.3V), RIN=±25V; (4)Output voltages: Tout=(V+0.3V) to (V-0.3V), ROUT=-0.3V to (VCC+0.3V); (5)Operating temperature: 0 to +70℃; (6)Storage temperature:-65 to +160℃; (7)Lead temperature: +300℃.
Features
MAX561CAI+ features: (1)2 Receivers active in shutdown mode; (2)Small 28-pin SSOP package; (3)Guaranteed interoperability with RS-232; (4)Operate from a single +3.0V to +3.6V supply; (5)Designed for EIA/TIA-562 applications; (6)4 drivers/5 receivers; (7)Low-power shutdown; (8)Three-state TTL/CMOS receiver outputs; (9)116kbits/sec data rate.

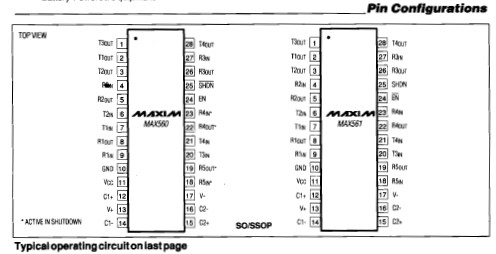

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX561CAI+ |
Maxim Integrated Products |
RS-232 Interface IC 3.3V Transceiver w/2 EIA TIA 562 Rec |
Data Sheet |
|
|
||||||||||||
|
MAX561CAI+T |
Maxim Integrated Products |
RS-232 Interface IC 3.3V Transceiver w/2 EIA TIA 562 Rec |
Data Sheet |
|
|
||||||||||||
