Product Summary
The ADSP-2181KS-160 is a single-chip microcomputer optimized for digital signal processing (DSP) and other high speed numeric processing applications. The device combines the ADSP-2100 family base architecture(three computational units, data address generators and a program sequencer) with two serial ports, a 16-bit internal DMA port, a byte DMA port, a programmable timer, Flag I/O, extensive interrupt capabilities, and on-chip program and data memory. The ADSP-2181KS-160 integrates 80K bytes of on-chip memory configured as 16K words (24-bit) of program RAM, and 16K words (16-bit) of data RAM.
Parametrics
ADSP-2181KS-160 absolute maximum ratings: (1)Supply voltage: –0.3 V to +7 V; (2)Input Voltage: –0.3 V to VDD + 0.3 V; (3)Output Voltage Swing: –0.3 V to VDD + 0.3 V; (4)Operating Temperature Range (Ambient): –40℃ to +85℃; (5)Storage Temperature Range: –65℃ to +150℃; (6)Lead Temperature (5 sec) TQFP: +280℃; (7)Lead Temperature (5 sec) PQFP: +280℃.
Features
ADSP-2181KS-160 features: (1)40 MIPS Sustained Performance; (2)Single-Cycle Instruction Execution; (3)Single-Cycle Context Switch; (4)3-Bus Architecture Allows Dual Operand Fetches in Every Instruction Cycle; (5)Multifunction Instructions; (6)Power-Down Mode Featuring Low CMOS Standby: Power Dissipation with 100 Cycle Recovery from Power-Down Condition; (7)Low Power Dissipation in Idle Mode.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

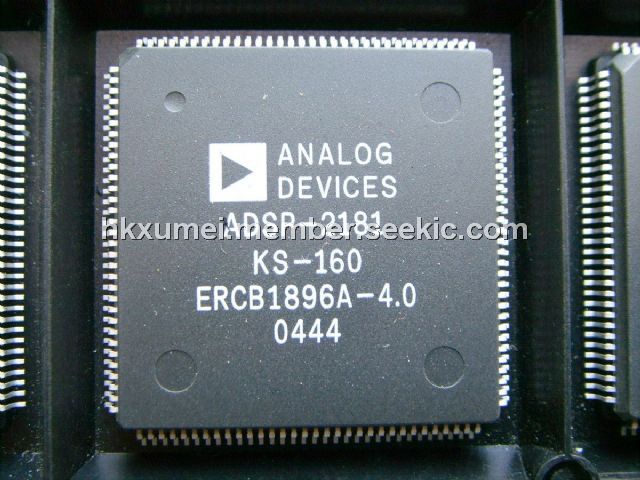

ADSP-2181KS-160 |
Analog Devices Inc |
IC DSP CONTROLLER 16BIT 128PQFP |
Data Sheet |
Negotiable |
|
|||||||||||||||
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||
ADSP-2100 |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||||
ADSP-2101BG-100 |
IC DSP CONTROLLER 16BIT 68PGA |
Data Sheet |
|
|
||||||||||||||||
ADSP-2101BGZ-100 |
Analog Devices Inc |
IC DSP 16BIT CTRL 25MHZ 68-PGA |
Data Sheet |
Negotiable |
|
|||||||||||||||
ADSP-2101BP-100 |
IC DSP CONTROLLER 16BIT 68PLCC |
Data Sheet |
|
|
||||||||||||||||
ADSP-2101BPZ-100 |
IC DSP SLG 16BIT 25MHZ 68-PLCC |
Data Sheet |
|
|
||||||||||||||||
ADSP-2101BS-100 |
Analog Devices Inc |
IC DSP CONTROLLER 16BIT 80PQFP |
Data Sheet |
Negotiable |
|
