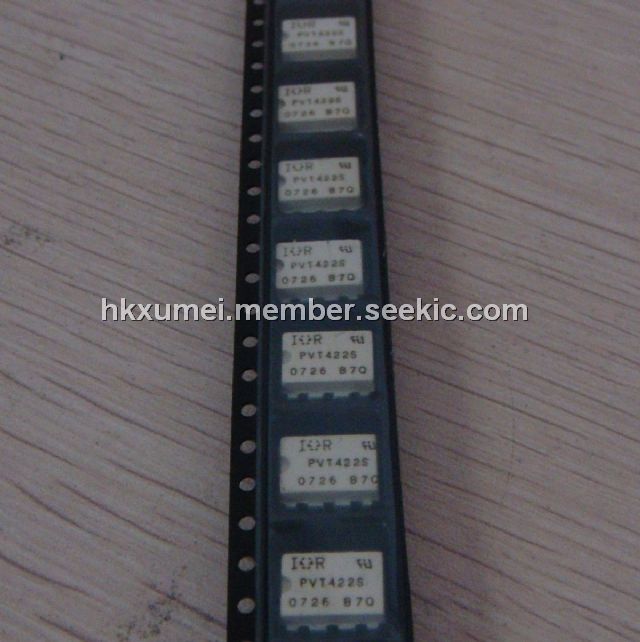

PVT422SPBF

solid-state relay, DIP, 2.0mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.50~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.50~2.00

PartNumber:: PVT422SPBF

Brand:: International Rectifier - IR | Pack: SOP | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Kate Fan's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-08

From Other Seller

Part Number:PVT422SPBF
US $1.50 - 2.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

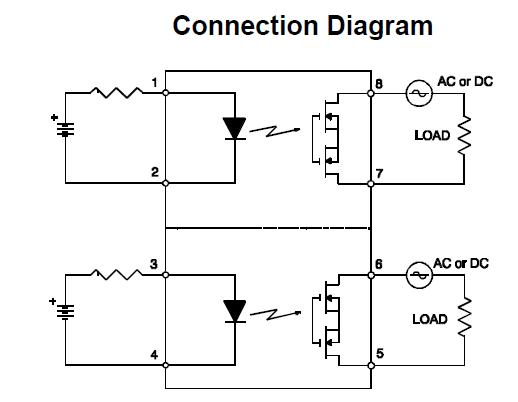

The PVT422SPBF is a solid-state relay. It can replace electromechanical relays in many applications. The PVT422SPBF is driven by an integrated circuit photovoltaic generator of novel construction. The output switch is controlled by radiation from a GaAlAs light emitting diode (LED) which is optically isolated from the photovoltaic generator. The PVT422SPBF is packaged in an 8-pin, molded DIP package with either thru-hole or surface mount (gull-wing) terminals. It is available in standard plastic shipping tubes or on tape-and-reel. The applications of the PVT422SPBF include On/Off Hook switch, Dial-Out relay, Ring injection relay and General switching.

Parametrics

PVT422SPBF absolute maximum ratings: (1)Minimum Control Current: 2.0 mA; (2)Maximum Control Current for Off-State Resistance @TA=+25℃: 0.4 mA; (3)Control Current Range (Caution: current limit input LED): 2.0 to 25 mA; (4)Maximum Reverse Voltage: 6.0 V; (5)Operating Voltage Range: 0 to ±400 V(DC or AC peak); (6)Maximum Load Current @ TA=+40℃, 5mA Control: 120 mA; (7)Maximum Peak Load Current (10ms maximum duration): 350 mA; (8)Maximum On-State Resistance @TA=+25℃: 35 Ω; (9)Maximum Off-State Leakage @TA=+25℃, ±320V: 1.0 μA; (10)Maximum Turn-On Time @TA=+25℃: 2.0 ms; (11)Maximum Turn-Off Time @TA=+25℃: 2.0 ms; (12)Maximum Output Capacitance @ 50VDC: 12 pF.

Features

PVT422SPBF features: (1)HEXFET Power MOSFET output; (2)Bounce-free operation; (3)4,000 VRMS I/O isolation; (4)Linear AC/DC operation; (5)Solid-State Reliability; (6)UL recognized and BABT certified.
