Product Summary

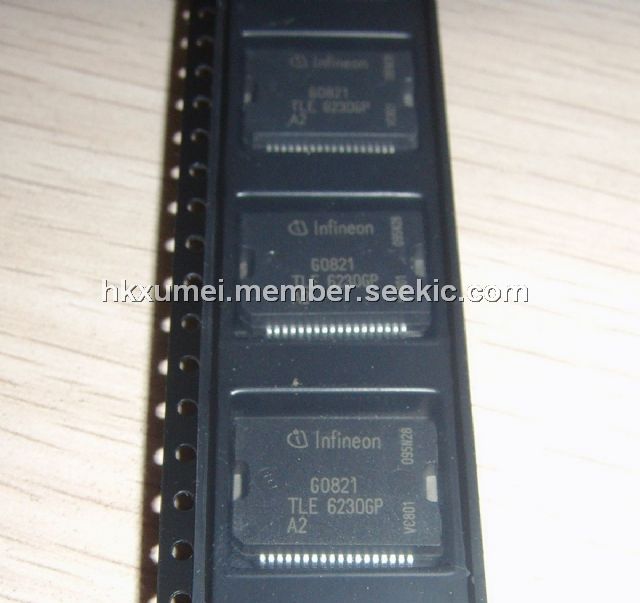

The TLE6230GP is a smart octal low-side switch. It is protected by embedded protection functions and designed for automotive and industrial applications. The output stages are controlled via an SPI Interface. Additionally four channels can be controlled direct in parallel for PWM applications. Therefore the device is particularly suitable for engine management and powertrain systems. The applications of the TLE6230GP include: (1)μC Compatible Power Switch for 12 V and 24V Applications; (2)Switch for Automotive and Industrial Systems; (3)Solenoids, Relays and Resistive Loads; (4)Robotic Controls.
Parametrics
TLE6230GP absolute maxing ratings: (1)Supply Voltage VS: -0.3 to + 7V; (2)Continuous Drain Source Voltage (OUT1 ~ OUT8) VDS: 40V; (3)Input Voltage, All Inputs and Data Lines VIN - 0.3 to + 7V; (4)Load Dump Protection VLoad Dump = UP+US; UP=13.5V With Automotive Relay Load RL = 70Ω VLoad Dump 2): 80V; RI1)=2Ω; td=400ms; IN = low or high With RL= 24Ω; RI=2Ω; td=400ms; IN = high or low: 52V; (5)Operating Temperature Range Tj: - 40 ... + 150℃; Storage Temperature Range Tstg: - 55 ... + 150℃; (6)Output Current per Channel (see el. characteristics) ID(lim): ID(lim) min A; (7)Output Current per Channel @ TA = 25℃(All 8 Channels ON; Mounted on PCB ) 3)ID: 500 mA; (8)Output Clamping Energy (single pulse)ID = 0.5 A EAS: 50 mJ; (9)Power Dissipation (mounted on PCB) @ TA = 25℃ Ptot: 3.3 W.
Features
TLE6230GP features: (1)Short Circuit Protection; (2)Overtemperature Protection; (3)Overvoltage Protection; (4)16 bit Serial Data Input and Diagnostic Output (2 bit/ch. acc. SPI protocol); (5)Direct Parallel Control of Four Channels for PWM Applications; (6)Parallel Inputs High or Low Active Programmable; (7)General Fault Flag; (8)Low Quiescent Current; (9)Compatible with 3,3 V Micro Controllers; (10)Electostatic Discharge (ESD) Protection.

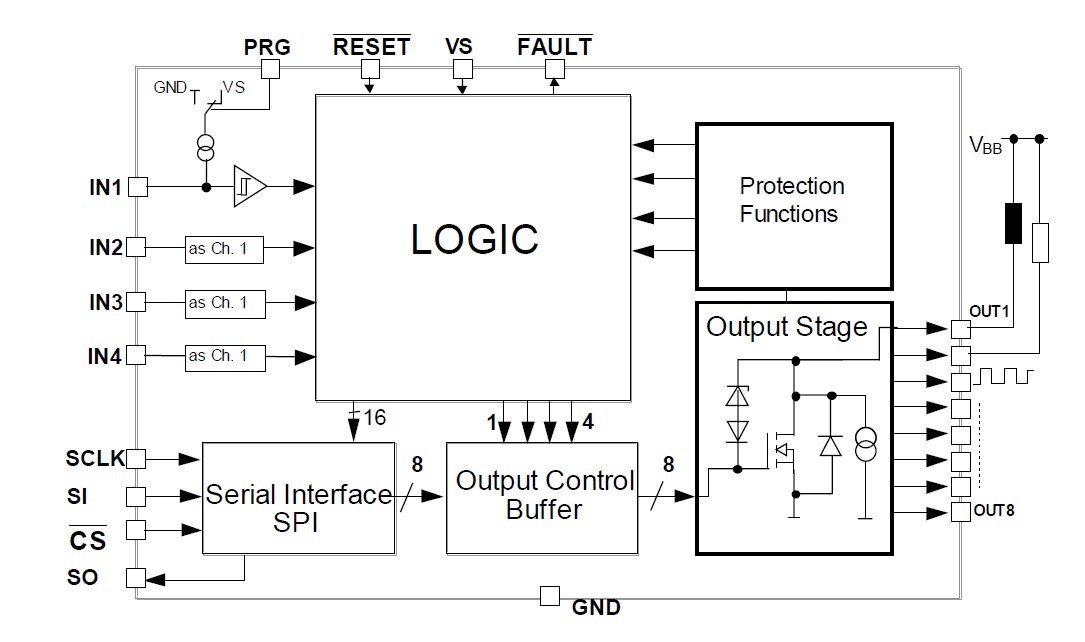

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLE6230GP |
Infineon Technologies |
Power Switch ICs - Power Distribution Smart Octal Low Side Switch |
Data Sheet |
|
|
||||||||||||
