Product Summary
The TLE6236G is protected by embedded protection functions and designed for automotive and industrial applications. The output stages of the TLE6236G are controlled via an SPI Interface. Additionally four channels can be controlled direct in parallel for PWM applications. The open load detection (pull down sources) can be disabled via the OL/PRG pin. Then the leakage current of the TLE6236G is reduced to 1μA (max.) to avoid e.g. the glowing of LEDs in off state. Therefore the TLE6236G is particularly suitable for body control units, dash board illumination or engine management systems.
Parametrics
TLE6236G maximum ratings: (1)Supply Voltage VS: -0.3 to +7 V; (2)Continuous Drain Source Voltage VDS: 45 V; (3)Input Voltage, All Inputs and Data Lines VIN: - 0.3 to + 7 V; (4)Operating Temperature Rang Tj: - 40 to + 150 ℃; (5)Storage Temperature Range Tstg: - 55 to + 150 ℃; (6)Output Current per Channel (see el. characteristics) ID(lim) ID(lim): min A; (7)Output Current per Channel @ TA = 25℃ (All 8 Channels ON; Mounted on PCB )ID: 250 mA; (8)Output Clamping Energy ID = 0.25 A EAS: 10 mJ.
Features
TLE6236G fearures: (1)Short Circuit Protection; (2)Overtemperature Protection; (3)Overvoltage Protection; (4)8 bit Serial Data Input and Diagnostic Output (accSPI protocol); (5)Direct Parallel Control of Four Channels for PWM Applications; (6)General Fault Flag; (7)Daisy chainable with other SPI devices; (8)Very Low Leakage Current; (9)Compatible with 3V Micro Controllers; (10)Electostatic Discharge (ESD) Protection.

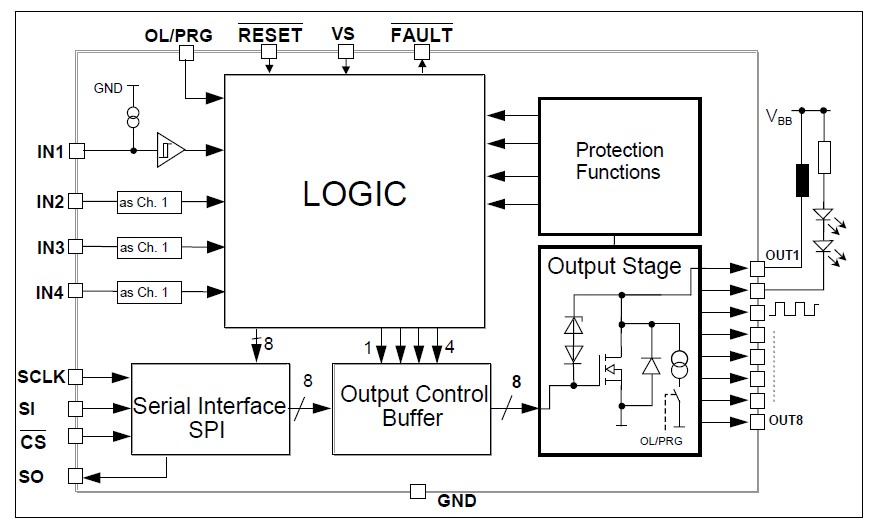

Diagrams
