Product Summary

The TLP371 is a GaAs ired & photo.transistor. It consists of a gallium arsenide infrared emitting diode optically coupled to a darlington connected photo-transistor which has an integrated base-emitter resistor to optimize switching speed and elevated temperature characteristics in a six lead plastic DIP package. The TLP371 is no-base internal connection for high-EMI environments.

Parametrics

TLP371 absolute maximum ratings: (1)Forward current IF: 60 mA; (2)Forward current derating (Ta ≥ 39℃) △IF / ℃: -0.7 mA / ℃; (3)Peak forward current (100μs pulse, 100pps) IFP: 1 A; (4)Reverse voltage VR: 5 V; (5)Junction temperature Tj: 125 ℃; (6)Storage temperature range Tstg: -55~125 ℃; (7)Operating temperature range Topr: -55~100 ℃; (8)Lead soldering temperature (10 s) Tsold: 260 ℃; (9)Total package power dissipation PT: 350 mW; (10)Total package power dissipation derating (Ta ≥ 25℃) △PT / ℃: -3.5 mW / ℃; (11)Isolation voltage (AC, 1min., R.H. ≤ 60%) BVS: 5000 Vrms.

Features

TLP371 features: (1)Office Machine; (2)Household Use Equipment; (3)Telecommunication; (4)Solid State Relay; (5)Programmable Controllers.

Diagrams

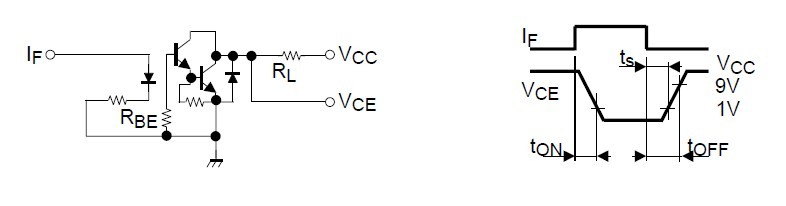

TLP371 test circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TLP371
TLP371

PHOTOCOUPLER DARL TRAN OUT 6-DIP
Data Sheet
Negotiable
TLP371(F)
TLP371(F)

PHOTOCOUPLER DARL TRAN OUT 6-DIP
Data Sheet
0-1: $0.53
1-10: $0.46
10-25: $0.41
25-100: $0.36
100-250: $0.31
250-500: $0.26
500-1000: $0.21
1000-2500: $0.19
2500-5000: $0.18
