Product Summary
The TMS320LF2407APGEA is a digital signal processor (DSP) controller. It offers an array of memory sizes and different peripherals tailored to meet the specific price/performance points required by various applications.
Parametrics
Absolute maximum ratings: (1)Supply voltage range:-0.3 V to 4.6 V; (2)VCCP range:-0.3 V to 5.5 V; (3)Input voltage range:-0.3 V to 4.6 V; (4)Output voltage range:-0.3 V to 4.6 V; (5)Output voltage range:-0.3 V to 4.6 V; (6)Input clamp current:± 20 mA ; (7)Output clamp current:± 20 mA; (8)Junction temperature range:-40℃ to 150℃; (9)Storage temperature range:-65℃ to 150℃.
Features
Features: (1)25-ns Instruction Cycle Time (40 MHz); (2)40-MIPS Performance; (3)Low-Power 3.3-V Design; (4)Up to 32K Words x 16 Bits of Flash EEPROM (4 Sectors) or ROM; (5)Programmable “Code-Security” Feature for the On-Chip Flash/ROM; (6)Up to 2.5K Words x 16 Bits of Data/Program RAM; (7)Phase-Locked-Loop (PLL)-Based Clock Generation; (8)Up to 40 Individually Programmable,Multiplexed General-Purpose Input /Output(GPIO) Pins; (9)Serial Communications Interface (SCI).

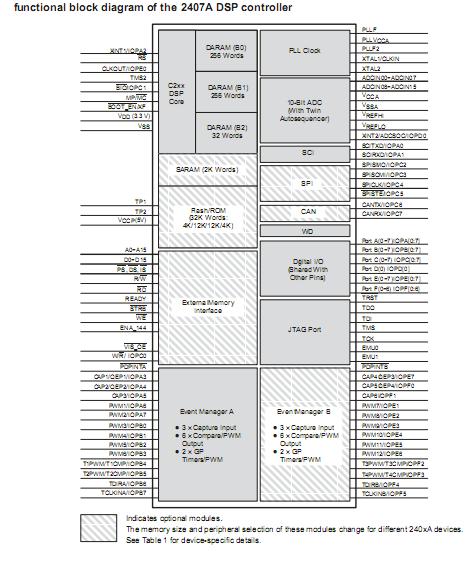

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

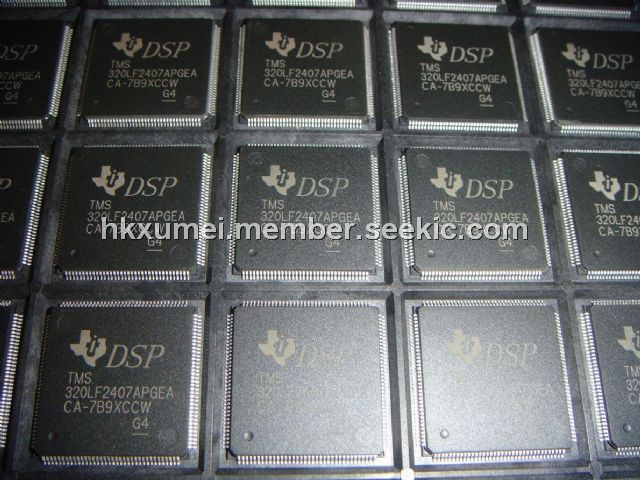

 TMS320LF2407APGEA |
Texas Instruments |
Digital Signal Processors & Controllers (DSP, DSC) 16-Bit Fixed Point DSP with Flash |
Data Sheet |
|
|
||||||||||||
