Product Summary
The VNH3SP30-E is a full-bridge motor driver intended for a wide range of automotive applications. The device incorporates a dual monolithic high-side driver (HSD) and two lowside switches. The low-side switches are vertical MOSFETs manufactured using STMicroelectronics proprietary EHD process. The VNH3SP30-E HSD switch is designed using STMicroelectronics proprietary VIPower M0-3 technology that efficiently integrates a true Power MOSFET with an intelligent signal/protection circuit on the same die.
Parametrics
VNH3SP30-E maximum ratings: (1)Supply voltage: -0.3 to 40 V; (2)Maximum output current (continuous): 30A; (3)Reverse output current (continuous): -30A; (4)Input current (INA and INB pins): ±10mA; (5)PWM input current: ±10mA; (6)Electrostatic discharge (R = 1.5kΩ, C = 100pF):(logic pins) 4 kV; (output pins)5 kV; (7)Junction operating temperature: Internally limited; (8)Case operating temperature: -40 to 150 ℃; (9)Storage temperature: -55 to 150℃.
Features
VNH3SP30-E features: (1)Output current: 30A; (2)5V logic level compatible inputsUndervoltage and overvoltage shutdown; (3)Overvoltage clamp; (4)Thermal shut down; (5)Cross-conduction protection; (6)Linear current limiter; (7)Very low standby power consumption; (8)PWM operation up to 10 kHz; (9)Protection against loss of ground and loss of VCC.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

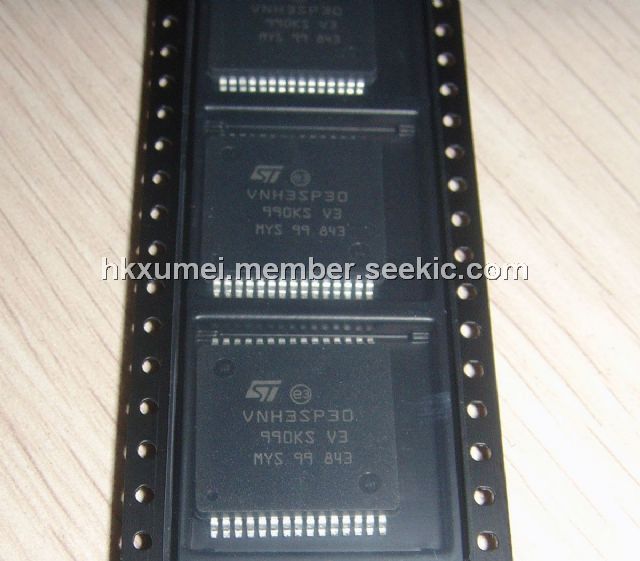

 VNH3SP30-E |
STMicroelectronics |
Motor / Motion / Ignition Controllers & Drivers H-Bridge Driver |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
VNH3ASP30 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
VNH3ASP30-E |
STMicroelectronics |
Motor / Motion / Ignition Controllers & Drivers Auto fully integratd H bridge motor drivr |
Data Sheet |
|
|
||||||||||||
|
VNH3ASP30TR-E |
STMicroelectronics |
Motor / Motion / Ignition Controllers & Drivers Auto fully integratd H bridge motor drivr |
Data Sheet |
|
|
||||||||||||
|
VNH3SP30 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
VNH3SP30-E |
STMicroelectronics |
Motor / Motion / Ignition Controllers & Drivers H-Bridge Driver |
Data Sheet |
|
|
||||||||||||
|
VNH3SP30TR-E |
STMicroelectronics |
Motor / Motion / Ignition Controllers & Drivers VIPOWER |
Data Sheet |
|
|
||||||||||||
