Product Summary

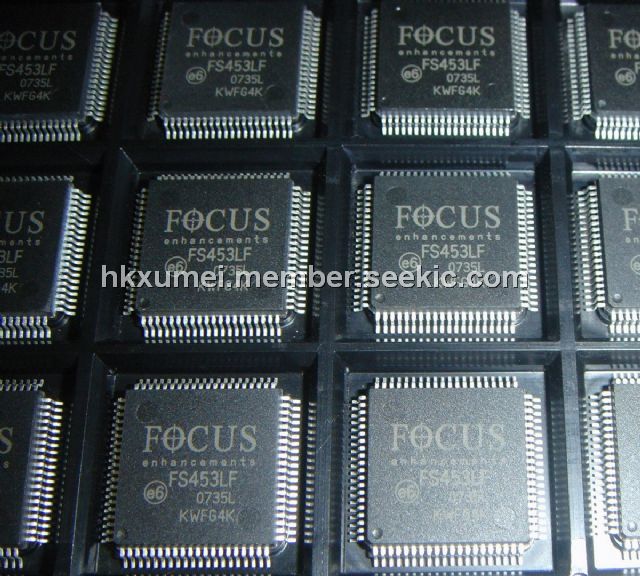

The FS453-LF is a TV encoder. The device is specifically designed for devices requiring high quality video output. The FS453-LF accepts various data inputs, including RGB, and YCrCb, through a programmable digital input interface that supports 24/18/16/12/8 bit pixel data lengths. Ouput resolutions from NTSC (720X480) to 1080i can be supported with this device FS453-LF.

Parametrics

FS453-LF absolute maximum ratings: (1)operating temperature: -40 to 85℃.

Features

FS453-LF features: (1)RGB or YCrCb digital inputs; (2)NTSC, PAL, YPbPr, VGA output; (3)Four 10bit DAC; (4)Advanced 2D Flicker Filter; (5)Advanced 2D Scaling; (6)Macrovision 7.1.L1; (7)7mm x 7mm, 88 ball, FBGA; (8)14mm x 14mm, 80 pin, PQFP.

Diagrams

FS453-LF block diagram
