Product Summary
The XPC860TCZP66D4 is a Quad Integrated Communications Controller (PowerQUICC.). The XPC860TCZP66D4 is a versatile one-chip integrated microprocessor and peripheral combination. The device is designed for a variety of controller applications. It particularly excels in both communications and networking systems. The PowerQUICC unit of the XPC860TCZP66D4 is referred to as the MPC860 in this manual.
Parametrics
XPC860TCZP66D4 absolute maximum ratings: (1)Supply Voltage, VDDH: –0.3 to 4.0 V; VDDL: –0.3 to 4.0 V; KAPWR: –0.3 to 4.0 V; VDDSYN: –0.3 to 4.0 V; (2)Input Voltage ,Vin: GND – 0.3 to VDDH V; (3)Temperature (Standard), TA(min): 0℃; Tj(max): 95℃; (4)Temperature (Extended), TA(min): –40℃; Tj(max): 95℃; (5)Storage Temperature Range, Tstg: –55 to 150℃.
Features
XPC860TCZP66D4 features: (1)Instruction and data caches are two-way, set-associative, physically addressed, LRU replacement, and lockable on-line granularity; (2)MMUs with 32-entry TLB, fully associative instruction, and data TLBs; (3)MMUs support multiple page sizes of 4, 16, and 512 Kbytes, and 8 Mbytes; 16 virtual address spaces and 16 protection groups; (4)Advanced on-chip-emulation debug mode; (5)Up to 32-bit data bus (dynamic bus sizing for 8, 16, and 32 bits); (6)32 address lines; (7)Operates at up to 80 MHz; (8)Contains complete dynamic RAM (DRAM) controller; (9)Each bank can be a chip select or RAS to support a DRAM bank; (10)Up to 15 wait states programmable per memory bank; (11)Glueless interface to DRAM, SIMMS, SRAM, EPROM, Flash EPROM, and other memory devices.

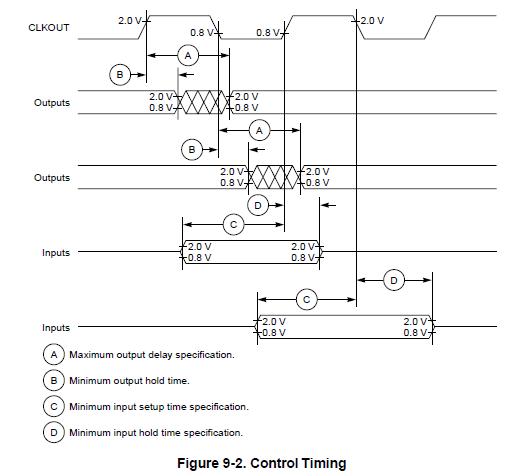

Diagrams
 |
