Product Summary

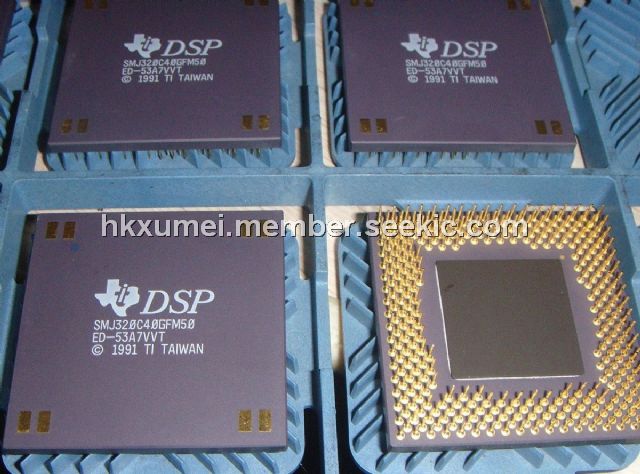

The SMJ320C40GFM50 is a digital signal processor (DSP). The device is a 32-bit, floating-point processor manufactured in 0.72-μm, double-level metal CMOS technology. The SMJ320C40GFM50 is a part of the fourth-generation DSPs from Texas Instruments and is designed primarily for parallel processing.

Parametrics

SMJ320C40GFM50 absolute maximum ratings: (1)Supply voltage range, VDD: -0.3 V to 7 V; (2)Input voltage range: -0.3 V to 7 V; (3)Output voltage range: -0.3 V to 7 V; (4)Operating case temperature range, TC: -55 to 125℃; (5)Storage temperature range, Tstg: -65 to 150℃.

Features

SMJ320C40GFM50 features: (1)High Port-Data Rate of 100 MBytes/s (Each Bus); (2)16G-Byte Continuous Program/Data/Peripheral Address Space; (3)Memory-Access Request for Fast, Intelligent Bus Arbitration; (4)Separate Address-, Data-, and Control-Enable Pins; (5)Four Sets of Memory-Control Signals Support Different Speed Memories in Hardware; (6)Six Communications Ports; (7)6-Channel Direct Memory Access (DMA) Coprocessor; (8)Single-Cycle Conversion to and From IEEE-745 Floating-Point Format; (9)Single Cycle 1/x, 1/; (10)Source-Code Compatible With SMJ320C30; (11)Validated Ada Compiler; (12)Single-Cycle 40-Bit Floating-Point, 32-Bit Integer Multipliers; (13)12 40-Bit Registers, 8 Auxiliary Registers, 14 Control Registers, and 2 Timers.

Diagrams

SMJ320C40GFM50 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SMJ320C40GFM50
SMJ320C40GFM50
Other

Data Sheet
Negotiable
