Product Summary

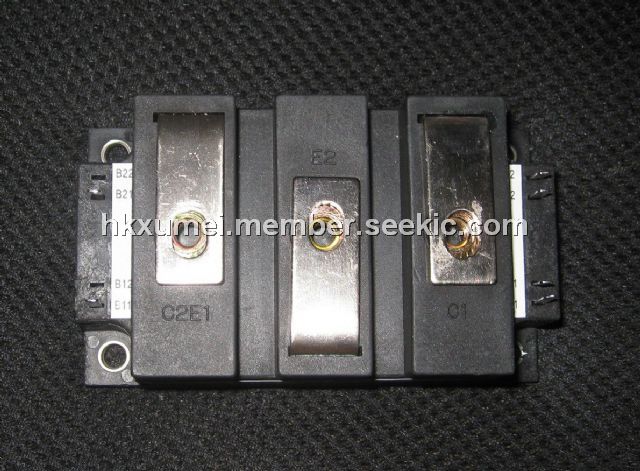

The 2DI200A-050 is a power transistor module. Applications include: (1)High power switching; (2)Uninterruptible power supply; (3)AC motor controls; (4)Welding machines.

Parametrics

2DI200A-050 absolute maximum ratings: (1)VCBO: 600V; (2)VCEO: 600V; (3)VCE(XSUS): 450V; (4)VEBO: 10V; (5)DC IC: 200A; (6)1ms ICP: 400A; (7)DC -IC: 200A; (8)DC IB: 10A; (9)1ms IBP: 20A; (10)One transistor PC: 900W; (11)Two transistors PC: 1800W; (12)Tj: +150; (13)Tstg: -40~+125; (14)m: 550g; (15)Viso: 2500V; (16)Mounting*1: 3.5N.m; (17)Terminals*2: 4.5N.m.

Features

2DI200A-050 features: (1)High current; (2)High DC current gain; (3)Insulated type.

Diagrams

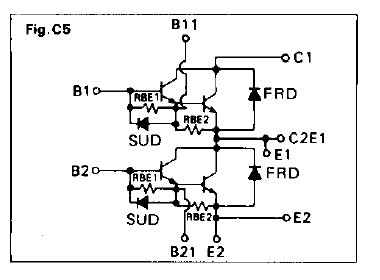

2DI200A-050 inner circuit schematic
