Product Summary

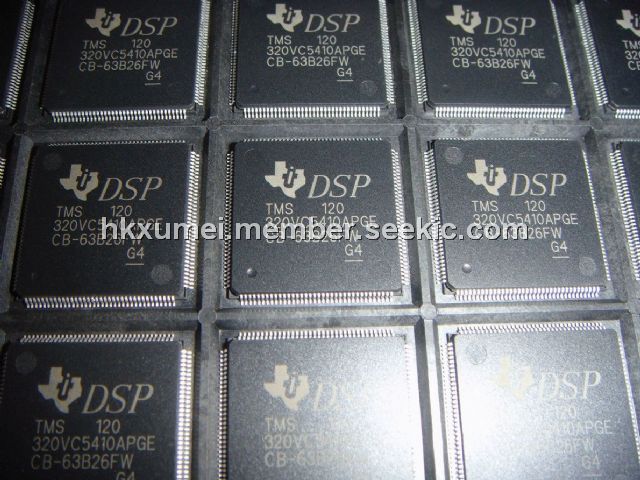

The TMS320VC5410APGE120 is a fixed-point digital signal processor.
Parametrics
Absolute maximum ratings: (1)Supply voltage I/O range:-0.3 V to 4.0 V; (2)Supply voltage core range:-0.3 V to 2.0 V; (3)Input voltage range:-0.3 V to 4.5 V; (4)Output voltage range:-0.3 V to 4.5 V; (5)Operating case temperature range:-40℃ to 100℃; (6)Storage temperature range:-55℃ to 150℃.
Features
Features: (1)Advanced Multibus Architecture With Three Separate 16-Bit Data Memory Buses and One Program Memory Bus; (2)40-Bit Arithmetic Logic Unit (ALU) Including 40-Bit Barrel Shifter and Two Independent 40-Bit Accumulators; (3)16K × 16-Bit On-Chip ROM Configured for Program Memory; (4)Enhanced External Parallel Interface (XIO2); (5)Single-Instruction-Repeat and Block-Repeat Operations for Program Code; (6)Block-Memory-Move Instructions for Better Program and Data Management; (7)Instructions With a 32-Bit Long Word Operand; (8)Instructions With Two- or Three-Operand Reads; (9)Arithmetic Instructions With Parallel Store and Parallel Load; (10)Conditional Store Instructions.

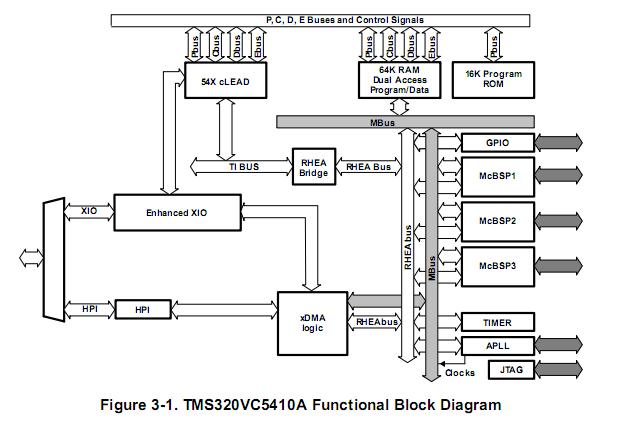

Diagrams
 |
