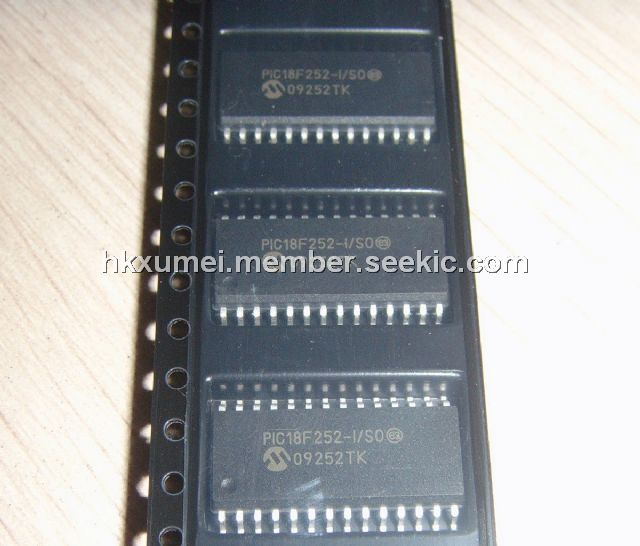

PIC18F252-I/SO

High Performance, Enhanced FLASH Microcontroller, 10-Bit A/D, -0.3V to +7.5V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.30~4.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.30~4.00

PartNumber:: PIC18F252-I/SO

Brand:: Microchip Technology - Microchip | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Kate Fan's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-08

From Other Seller

Part Number:PIC18F252-I/SO
US $3.30 - 4.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The PIC18F252-I/SO is a 28/40-pin High Performance, Enhanced FLASH Microcontroller with 10-Bit A/D.

Parametrics

PIC18F252-I/SO absoltue maximum ratings: (1)Ambient temperature under bias: -55 to +125℃; (2)Storage temperature: -65 to +150℃; (3)Voltage on any pin with respect to VSS (except VDD, MCLR, and RA4): -0.3V to (VDD + 0.3V); (4)Voltage on VDD with respect to VSS: -0.3V to +7.5V; (5)Voltage on MCLR with respect to VSS: 0V to +13.25V; (6)Voltage on RA4 with respect to Vss: 0V to +8.5V; (7)Total power dissipation: 0W; (8)Maximum current out of VSS pin: 300 mA; (9)Maximum current into VDD pin: 250 mA; (10)Input clamp current, IIK (VI < 0 or VI > VDD): ±20 mA; (11)Output clamp current, IOK (VO < 0 or VO > VDD): ±20 mA; (12)Maximum output current sunk by any I/O pin: 25 mA; (13)Maximum output current sourced by any I/O pin: 25 mA; (14)Maximum current sunk by PORTA, PORTB, and PORTE(combined): 200 mA; (15)Maximum current sourced by PORTA, PORTB, and PORTE(combined): 200 mA; (16)Maximum current sunk by PORTC and PORTD (combined): 200 mA; (17)Maximum current sourced by PORTC and PORTD(combined): 200 mA.

Features

PIC18F252-I/SO features: (1)High current sink/source 25 mA/25 mA; (2)Three external interrupt pins; (3)Timer0 module: 8-bit/16-bit timer/counter with 8-bit programmable prescaler; (4)Timer1 module: 16-bit timer/counter; (5)Timer2 module: 8-bit timer/counter with 8-bit period register (time-base for PWM); (6)Timer3 module: 16-bit timer/counter; (7)Secondary oscillator clock option - Timer1/Timer3; (8)Two Capture/Compare/PWM (CCP) modules; (9)FLASH/Data EEPROM Retention: > 40 years; (10)Self-reprogrammable under software control; (11)Power-on Reset (POR), Power-up Timer (PWRT) and Oscillator Start-up Timer (OST); (12)Watchdog Timer (WDT) with its own On-Chip RC Oscillator for reliable operation; (13)Programmable code protection; (14)Power saving SLEEP mode.
