Product Summary
The 88E1041SD2-BAE-C000 is a Gigabit Ethernet (GbE) over copper transceiver. Targeted at high-density GbE switches, the Alaska Quad transceivers are single-chip devices containing four independent GbE PHYs on a single monolithic IC. The 88E1041SD2-BAE-C000 performs all of the physical layer functions for 100BASE-TX and 1000BASE-T full or half duplex Ethernet on category 5 (CAT 5) twisted pair cable, and 10BASE-T full or half duplex Ethernet on CAT 3, 4 and 5 cable. It offers additional support of 1000BASE-X through an integrated 1.25 GHz Serializer/Deserializer.
Features
88E1041SD2-BAE-C000 features: (1)Highly integrated 4-port device; (2)Ultra low power, just exceeding 1W/port; (3)10/100/1000BASE-T IEEE 802.3 compliant; (4)Supports GMII/RGMII/TBI/RTBI interfaces; (5)Virtual Cable TesterTM feature; (6)Integrated 1.25 GHz SERDES (881040S, 88E1041S, 88E1042H); (7)Media Detect feature automatically detects and configures to either copper or fiber media; (8)Automatic support for 2-pair CAT 5 cable (100 Mbps); (9)Power management modes; (10)Four RGMII timing modes; (11)User configurable independent Media Access Controller (MAC); (12)interface select.

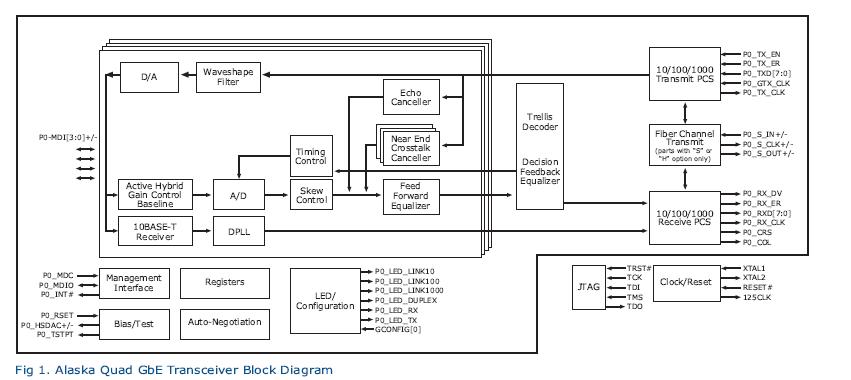

Diagrams
 |
