Product Summary

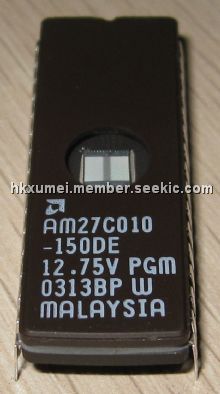

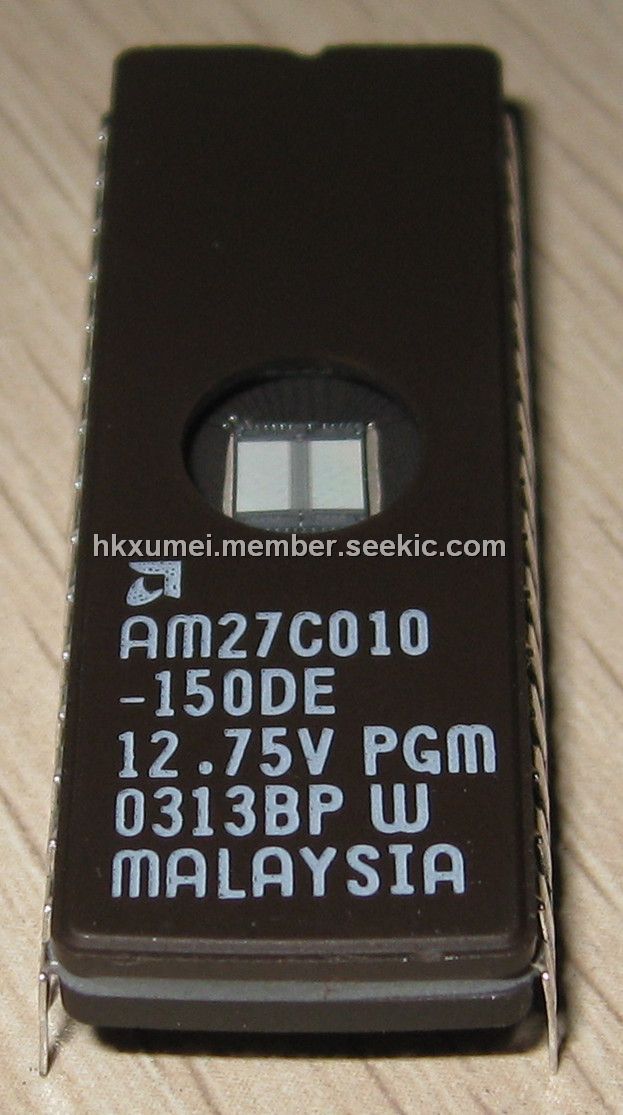

The AM27C010-150DE is a 1 Megabit, ultraviolet erasable programmable read-only memory. It is organized as 128K words by 8 bits per word, operates from a single +5 V supply, has a static standby mode, and features fast single address location programming. CMOS process technology of the AM27C010-150DE provides high speed, low power, and high noise immunity. Typical power consumption is only 100 mW in active mode, and 100 μW in standby mode.
Parametrics
AM27C010-150DE maximum ratings: (1)Storage Temperature: –65℃ to +125℃; (2)All Other Products: –65℃ to +150℃; (3)Ambient Temperature with Power Applied: –55°C to +125°C; (4)Voltage with Respect to VSS All pins except A9, VPP, VCC: –0.6 V to VCC + 0.6 V; (5)A9 and VPP (Note 2): –0.6 V to 13.5 V; (6)VCC: –0.6 V to 7.0 V.
Features
AM27C010-150DE features: (1)Fast access time; (2)Low power consumption; (3)JEDEC-approved pinout; (4)Single +5 V power supply; (5)±10% power supply tolerance standard; (6)100% Flashrite. programming; (7)Latch-up protected to 100 mA from –1 V to VCC + 1 V; (8)High noise immunity; (9)Versatile features for simple interfacing; (10)Standard 28-pin DIP, PDIP, and 32-pin PLCC packages.
Diagrams
 |
