Product Summary

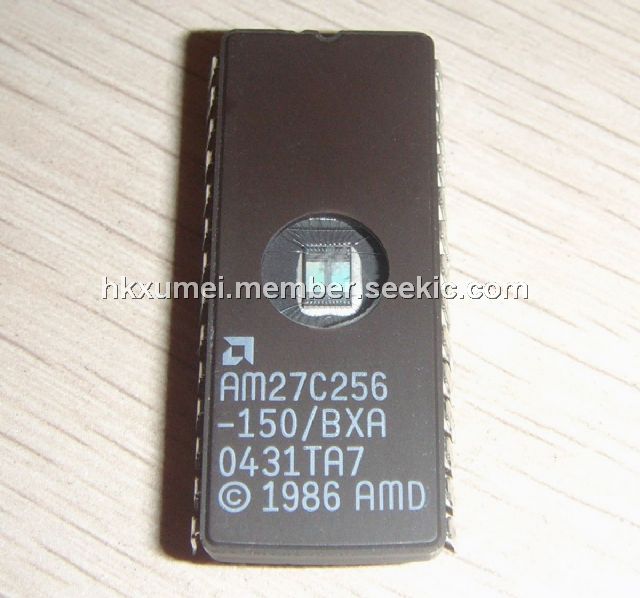

The AM27C256-150/BXA is a 256K-bit ultraviolet erasable programmable read-only memory. It is organized as 32K words by 8 bits per word. The AM27C256-150/BXA operates from a single +5 V supply. The device has a static standby mode, and features fast single address location programming. The AM27C256-150/BXA is available in windowed ceramic DIP packages as well as plastic one time programmable (OTP) PDIP, TSOP, and PLCC packages. The AM27C256-150/BXA can provide high speed, low power, and high noise immunity. Typical power consumption is only 80 mW in active mode, and 100 mW in standby mode.
Parametrics
AM27C256-150/BXA absolute maximum ratings: (1)Storage Temperature: –65 to +150℃; (2)Ambient Temperature with Power Applied: –55 to +125℃; (3)Voltage with Respect To VSS, All pins except A9,VPP,VCC: –0.6 V to VCC + 0.5 V; A9 and VPP: –0.6 V to +13.5 V; VCC: –0.6 V to +7.0 V.
Features
AM27C256-150/BXA features: (1)Fast access time: 55 ns; (2)Low power consumption: 20 mA typical CMOS standby current; (3)n JEDEC-approved pinout; (4)Single +5 V power supply; (5)±10% power supply tolerance available; (6)100% Flashrite programming: Typical programming time of 4 seconds; (7)Latch-up protected to 100 mA from –1 V to VCC + 1 V; (8)High noise immunity; (9)Versatile features for simple interfacing: Both CMOS and TTL input/output compatibility; Two line control functions; (10)Standard 28-pin DIP, PDIP, 32-pin TSOP and PLCC packages.
Diagrams
 |
