Product Summary

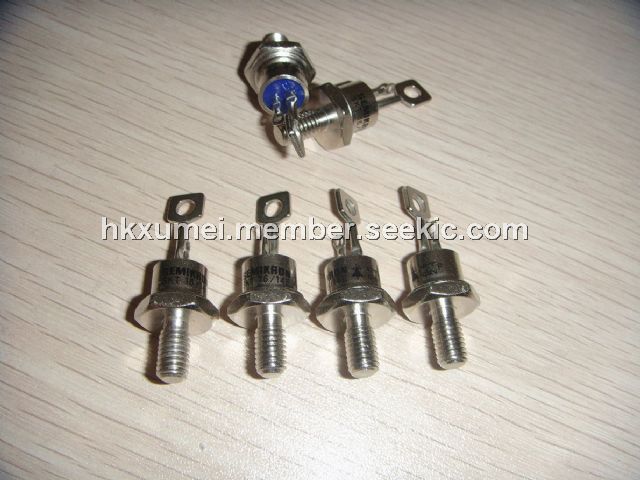

The SKT16/14E is a Stud Thyristor. The applications of it are DC motor control, controlled rectifiers, AC controllers and so on.

Parametrics

General specifications: (1)(di/dt)cr:max.50A/μs; (2)(dv/dt)cr:max.500/1000 V/μs; (3)tq=80μs; (4)IH=80/150mA; (5)IL=150/300mA; (6)VGT=min. 3V; (7)IGT=min. 100mA; (8)VGD=max. 0.25V; (9)IGD=max. 3mA.

Features

Features: (1)hermetic metal case with glass insulator; (2)threaded stud ISO M6 or UNF 1/4-28; (3)international standard case.
