Product Summary

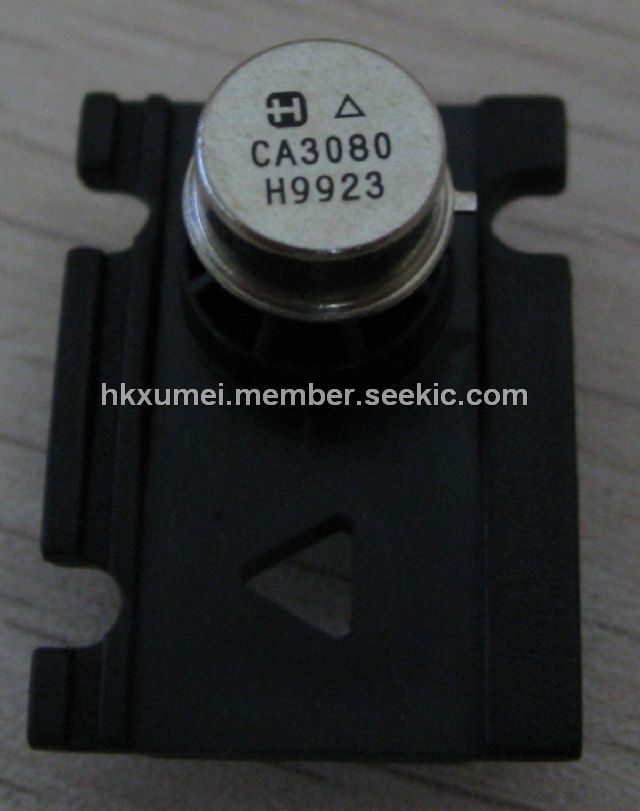

The CA3080 is a Gatable-Gain Block which utilizes the unique operational-transconductanceamplifier (OTA) concept described in Application Note AN6668. The applications of the CA3080 include: sample and hold, multiplier, multiplexer, comparator, voltage follower.
Parametrics
CA3080 maximum ratings:(1)Supply Voltage (Between V+ and V- Terminal): 36V; (2)Differential Input Voltage: 5V; (3)Input Voltage: V+ to V-; (4)Input Signal Current: 1mA; (5)Amplifier Bias Current (IABC): 2mA; (6)Output Short Circuit Duration (Note 1): No Limitation.
Features
CA3080 features: (1)Slew Rate (Unity Gain, Compensated): 50V/μS; (2)Adjustable Power Consumption: 10 μw to 30μw; (3)Flexible Supply Voltage Range: ±V to ±15V; (4)Fully Adjustable Gain: 0 to gMRL Limit; (5)Tight gM Spread: CA3080 is 2:1; CA3080A is 1.6:1; (6)Extended gM Linearity: 3 Decades.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 CA3080 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
CA3080A |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
CA3080E |
|
IC OPAMP TRANSCONDUCT 2MHZ 8-DIP |
Data Sheet |
Negotiable |
|
||||
|
CA3080E DIP |
Other |
|
Data Sheet |
Negotiable |
|
||||
