Product Summary

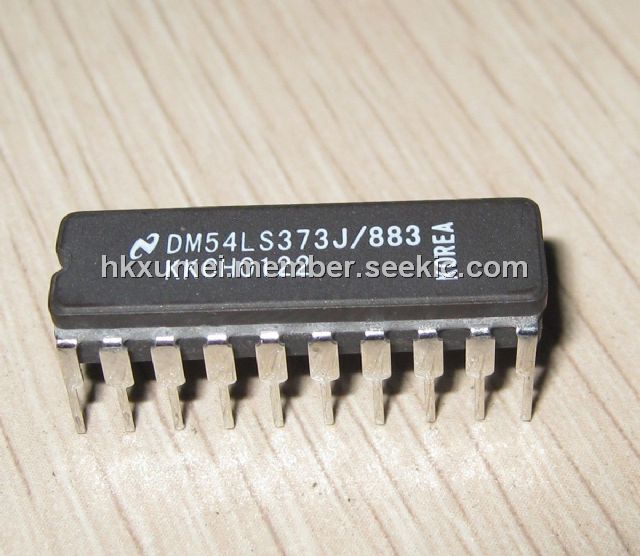

The DM54LS373J/883 is a tri-state octal D-type transparent latch and edge-triggered flip-flop. The 8-bit register features totem-pole TRI-STATE outputs designed specifically for driving highly-capacitive or relatively low-impedance loads. The high-impedance state and increased high-logic level drive provide these registers with the capability of being connected directly to and driving the bus lines in a bus-organized system without need for interface or pull-up components. The DM54LS373J/883 is particularly attractive for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.
Parametrics
DM54LS373J/883 maximum ratings: (1)Supply Voltage: 7V; (2)Input Voltage: 7V; (3)Storage Temperature Range: -65 to +150℃; (4)Operating Free Air Temperature Range: -55 to +125℃.
Features
DM54LS373J/883 features: (1)Choice of 8 latches or 8 D-type flip-flops in a single package; (2)TRI-STATE bus-driving outputs; (3)Full parallel-access for loading; (4)Buffered control inputs; (5)P-N-P inputs reduce D-C loading on data lines.

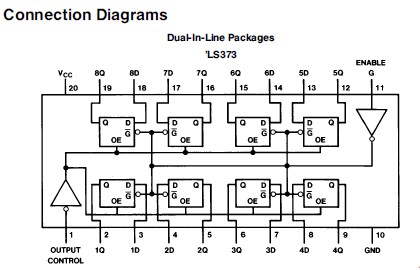

Diagrams
 |
