Product Summary
The ADS7810U is a complete 12-bit sampling A/D using state-of-the-art CMOS structures. It contains a complete 12-bit capacitor-based SAR A/D with inherent S/H, reference, clock, interface for microprocessor use, and three-state output drivers.
Parametrics
Absolute maximum ratings: (1)Analog Inputs: VIN:±25V,REF:+VANA +0.3V to AGND2-0.3V, CAP:Indefinite Short to AGND2, Momentary Short to +VANA; (2)Ground Voltage Differences: DGND, AGND1, AGND2:±0.3V,+VANA:+7V,+VDIG to +VANA:+0.3V,+VDIG:7V,–VANA:–7V; (3)Digital Inputs:–0.3V to +VDIG +0.3V; (4)Maximum Junction Temperature:+165℃; (5)Internal Power Dissipation:825mW; (6)Lead Temperature (soldering, 10s):+300℃.
Features
Features: (1)1.25μs throughput time; (2)standard ±10V input range; (3)69dB min sinad with 250kHz input; (4)±3/4 LSB max INL AND ±1 LSB max DNL; (5)internal reference; (6)complete with S/H, ref, clock, etc.; (7)parallel data w/LATCHES; (8)28-PIN SOIC.

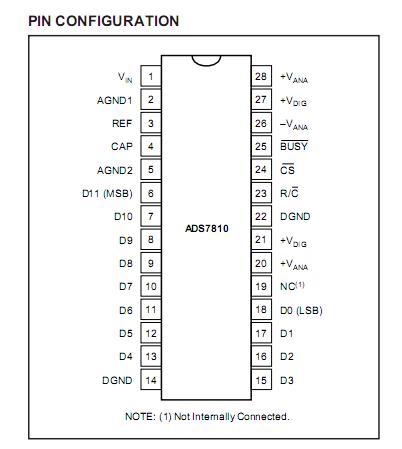

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

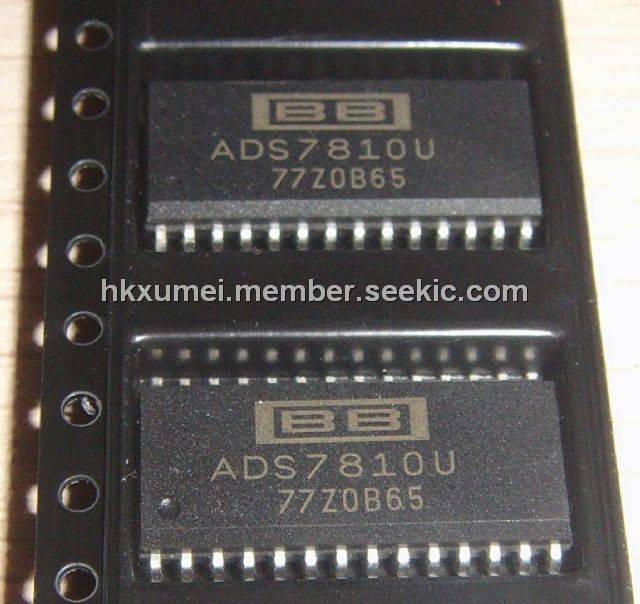

 ADS7810U |
Texas Instruments |
ADC (A/D Converters) 12-Bit 800kHz Sampling CMOS |
Data Sheet |
Negotiable |
|
||||
|
ADS7810U/1K |
Texas Instruments |
ADC (A/D Converters) 12-Bit 800kHz Sampling CMOS |
Data Sheet |
Negotiable |
|
||||
|
ADS7810UB/1KE4 |
Texas Instruments |
ADC (A/D Converters) 12-Bit 800kHz Sampling CMOS |
Data Sheet |
Negotiable |
|
||||
|
ADS7810UB |
Texas Instruments |
ADC (A/D Converters) 12-Bit 800kHz Sampling CMOS |
Data Sheet |
Negotiable |
|
||||
|
ADS7810U/1KE4 |
Texas Instruments |
ADC (A/D Converters) 12-Bit 800kHz Sampling CMOS |
Data Sheet |
Negotiable |
|
||||
 |
ADS7810UB/1K |
|
IC 12-BIT 800KHZ SMPL A/D 28SOIC |
Data Sheet |
Negotiable |
|
||||
|
ADS7810UBE4 |
Texas Instruments |
ADC (A/D Converters) 12-Bit 800kHz Sampling CMOS |
Data Sheet |
Negotiable |
|
||||
|
ADS7810UE4 |
Texas Instruments |
ADC (A/D Converters) 12-Bit 800kHz Sampling CMOS |
Data Sheet |
Negotiable |
|
||||
