Product Summary
The Hitachi HM62256LP-10 is a CMOS static RAM organized 32-kword ´ 8-bit. It realizes higher performance and low power consumption by employing 0.8 μm Hi-CMOS process technology. The Hitachi HM62256LP-10 offers low power standby power dissipation; therefore, it is suitable for battery back up system.
Parametrics
HM62256LP-10 maximum ratings: (1)Voltage on any pin relative to VSS: –0.5 to +7.0 V; (2)Power dissipation: 1.0 W; (3)Operating temperature: 0 to +70 ℃; (4)Storage temperature: –55 to +125 ℃; (5)Storage temperature under bias: –10 to +85 ℃.
Features
HM62256LP-10 features: (1)High speed: Fast Access time 85/100/120/150 ns (max); (2)Low Power Standby: 5 μW (typ) (L/L-SL version); (3)Operation: 40 mW (typ) (f = 1 MHz); (4)Single 5 V supply; (5)Completely static memory; (6)No clock or timing strobe required; (7)Equal access and cycle times; (8)Common data input and output: Three state output; (9)Directly TTL compatible: All inputs and outputs; (10)Capability of battery back up operation.

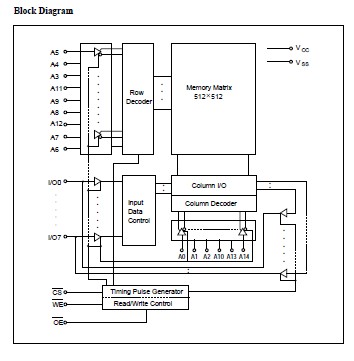

Diagrams
 |
