LT1213CS-8

dual, single supply precision operation amplifier, 8-input positive-NAND gates, 14-SOIC, 0 to 70V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.60~0.85 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.60~0.85

PartNumber:: LT1213CS-8

Brand:: Linear Technology - Linear | Pack: SOP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Kate Fan's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-08

From Other Seller

Part Number:LT1213CS-8
US $0.60 - 0.85
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

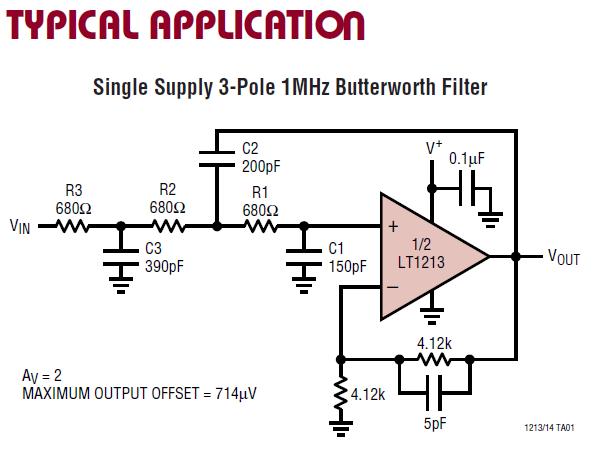

The LT1213CS-8 is a dual, single supply precision op amp with a 28MHz gain-bandwidth product and a 12V/ms slew rate. The LT1213CS-8 is a quad version of the same amplifier. The DC precision of the LT1213CS-8 eliminates trims in most systems while providing high frequency performance not usually found in single supply amplifiers. The applications of the LT1213CS-8 include 2.5V Full-Scale 12-Bit Systems: VOS ≤ 0.45LSB, 10V Full-Scale 16-Bit Systems: VOS ≤ 1.8LSB, Active Filters, Photodiode Amplifiers, DAC Current-to-Voltage Amplifiers and Battery-Powered Systems.

Parametrics

LT1213CS-8 absolute maximum ratings: (1)Total Supply Voltage (V + to V –): 36V; (2)Input Current: ±15mA; (3)Output Short-Circuit Duration: Continuous; (4)Operating Temperature Range: –40 to 85℃; (5)Storage Temperature Range: – 65 to 150℃; (6)Junction Temperature: 150℃; (7)Lead Temperature (Soldering, 10 sec): 300℃.

Features

LT1213CS-8 features: (1)Slew Rate: 12V/μs Typ; (2)Gain-Bandwidth Product: 28MHz Typ; (3)Fast Settling to 0.01% 2V Step to 200mV: 500ns Typ, 10V Step to 1mV: 1.1ms Typ; (4)Excellent DC Precision in All Packages; (5)Single Supply Operation: Input Voltage Range Includes Ground; Output Swings to Ground While Sinking Current; (6)Low Input Noise Voltage: 10nV/Hz Typ; (7)Low Input Noise Current: 0.2pA/Hz Typ; (8)Specified at 3.3V, 5V and ±5V; (9)Large Output Drive Current: 30mA Min; (10)Low Supply Current per Amplifier: 3.5mA Max; (11)Dual in 8-Pin DIP and SO-8; (12)Quad in 14-Pin DIP and NARROW SO-16.
