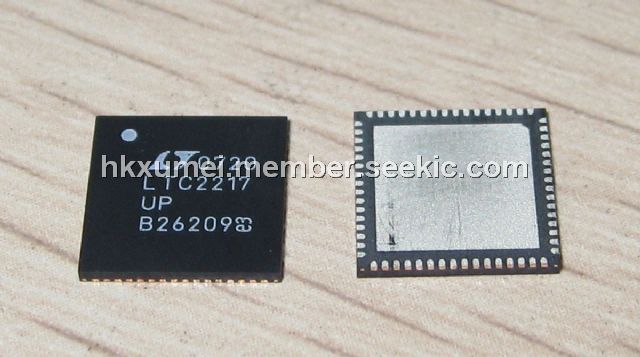

Product Summary
The LTC2217CUP is a 105Msps sampling 16-bit A/D converter designed for digitizing high frequency, wide dynamic range signals with input frequencies up to 400MHz. The input range of the ADC is fi xed at 2.75VP-P. The applications of the LTC2217CUP include: (1)Telecommunications; (2)Receivers; (3)Cellular Base Stations; (4)Spectrum Analysis; (5)Imaging Systems; (6)ATE.
Parametrics
LTC2217CUP absolute maxing ratings: (1)Supply Voltage (VDD): -0.3V to 4V; (2)Digital Output Ground Voltage (OGND):-0.3V to 1V; (3)Analog Input Voltage: -0.3V to (VDD + 0.3V); (4)Digital Input Voltage: -0.3V to (VDD + 0.3V); (5)Digital Output Voltage: -0.3V to (OVDD + 0.3V); (6)Power Dissipation: 2000mW; (7)Operating Temperature Range: 0℃ to 70℃; (8)Storage Temperature Range: -65℃ to 150℃; (9)Digital Output Supply Voltage (OVDD): -0.3V to 4V.
Features
LTC2217CUP features: (1)Sample Rate: 105Msps; (2)81.3dBFS Noise Floor; (3)100dB SFDR; (4)SFDR >90dB at 70MHz; (5)85fsRMS Jitter; (6)2.75VP-P Input Range; (7)400MHz Full Power Bandwidth S/H; (8)Optional Internal Dither; (9)Optional Data Output Randomizer; (10)LVDS or CMOS Outputs; (11)Single 3.3V Supply; (12)Power Dissipation: 1.19W; (13)Clock Duty Cycle Stabilizer; (14)Pin Compatible with LTC2208; (15)64-Pin (9mm×9mm) QFN Package.

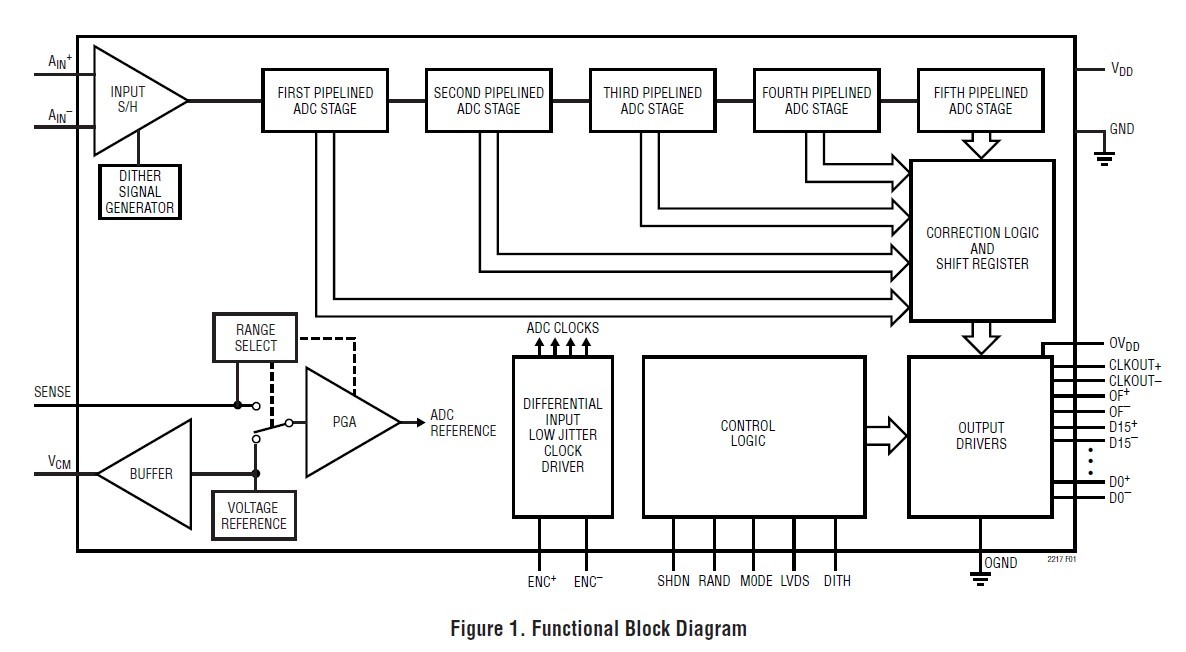

Diagrams
