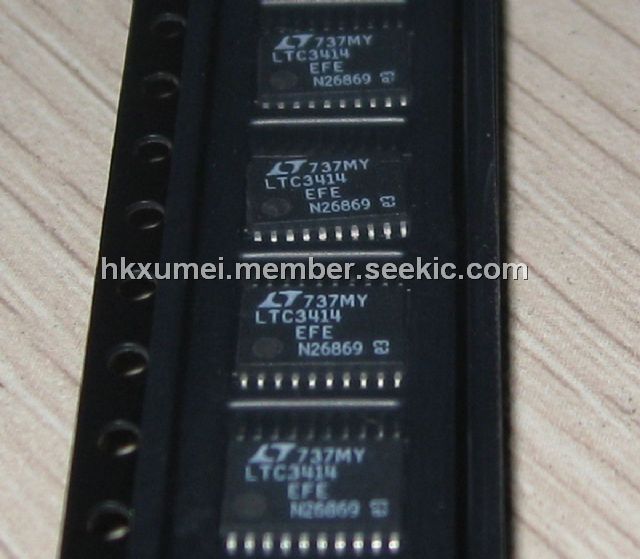

LTC3414EFE#PBF

DC/DC converter, TSSOP, -0.3V to 6V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.50~4.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.50~4.20

PartNumber:: LTC3414EFE#PBF

Brand:: Linear Technology - Linear | Pack: TSSOP | D/C: 05+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Kate Fan's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-08

From Other Seller

Part Number:LTC3414EFE#PBF
US $3.50 - 4.20
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LTC3414EFE#PBF is a high efficiency monolithic synchronous, step-down DC/DC converter utilizing a constant frequency, current mode architecture. It operates from an input voltage range of 2.25V to 5.5V and provides a regulated output voltage from 0.8V to 5V while delivering up to 4A of output current. The applications of the LTC3414EFE#PBF include: (1)Point-of-Load Regulation; (2)Notebook Computers; (3)Portable Instruments; (4)Distributed Power Systems.

Parametrics

LTC3414EFE#PBF absolute maxing ratings: (1)Input Supply Voltage: -0.3V to 6V; (2)ITH, RUN/SS, VFB, SYNC/MODE Voltages: –0.3 to VIN; (3)SW Voltages: –0.3V to (VIN + 0.3V); (4)Peak SW Sink and Source Current: 9.5A; (5)Operating Ambient Temperature Range: –40℃ to 85℃; (6)Junction Temperature: 125℃; (7)Storage Temperature Range: –65℃ to 150℃; (8)Lead Temperature (Soldering, 10 sec): 300℃.

Features

LTC3414EFE#PBF features: (1)High Efficiency: Up to 95%; (2)4A Output Current; (3)Low Quiescent Current: 64mA; (4)Low RDS(ON) Internal Switch: 67mW; (5)Programmable Frequency: 300KHz to 4MHz; (6)2.25V to 5.5V Input Voltage Range; (7)±2% Output Voltage Accuracy; (8)0.8V Reference Allows Low Output Voltage; (9)Selectable Forced Continuous/Burst Mode peration with Adjustable Burst Clamp; (10)Synchronizable Switching Frequency; (11)Low Dropout Operation: 100% Duty Cycle; (12)Power Good Output Voltage Monitor; (13)Overtemperature Protected; (14)Available in 20-Lead Exposed TSSOP Package.
