Product Summary
The MIC4423BN is highly reliable BiCMOS/DMOS buffer/driver/MOSFET driver. It is pin-compatible. It is capable of giving reliable service in more demanding electrical environments than their predecessors. It will not latch under any conditions within their power and voltage ratings. It can survive up to 5V of noise spiking, of either polarity, on the ground pin. The MIC4423BN driver can accept, without either damage or logic upset, up to half an amp of reverse current (either polarity) forced back into their outputs.
Parametrics
MIC4423BN absolute maxing ratings: (1)Supply Voltage: +22V; (2)Input Voltage: VS+0.3V to GND-5V; (3)Junction Temperature: 150℃; (4)Storage Temperature Range: -65℃ to 150℃; (5)Lead Temperature (10 sec.): 300℃; (6)ESD Susceptability: 1000V.
Features
MIC4423BN features: (1)Reliable, low-power bipolar/CMOS/DMOS construction; (2)Latch-up protected to >500mA reverse current; (3)Logic input withstands swing to -5V; (4)High 3A-peak output current; (5)Wide 4.5V to 18V operating range; (6)Drives 1800pF capacitance in 25ns; (7)Short <40ns typical delay time; (8)Delay times consistent with in supply voltage change; (9)Matched rise and fall times; (10)TTL logic input independent of supply voltage; (11)Low equivalent 6pF input capacitance; (12)Low supply current: 3.5mA with logic-1 input, 350mA with logic-0 input; (13)Low 3.5W typical output impedance; (14)Output voltage swings within 25mV of ground or VS.; (15)426/7/8-, 426/7/8-, 426/7/8-compatible pinout; (16)Inverting, noninverting, and differential configurations.

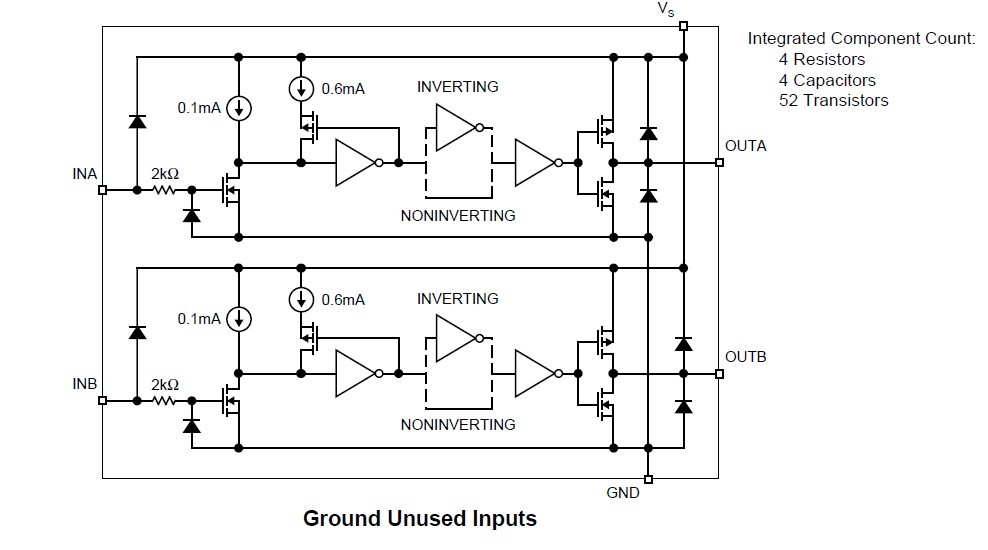

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

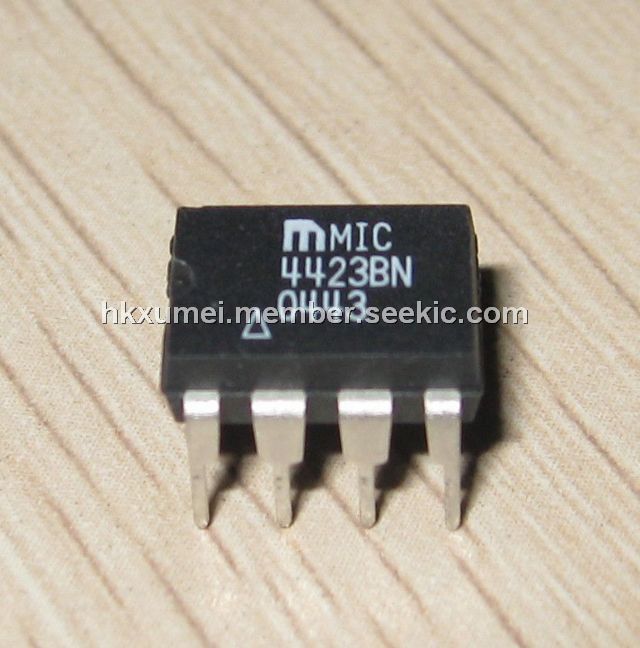

MIC4423BN |
IC DRIVER MOSFET 3A DUAL 8DIP |
Data Sheet |
Negotiable |
|
||||||||||||||||
