Product Summary

The MIC5800BN latched driver is a high-voltage, high-current integrated circuit comprised of four or eight CMOS data latches, a bipolar Darlington transistor driver for each latch, and CMOS control circuitry for the common CLEAR, STROBE, and OUTPUT ENABLE functions. The bipolar/MOS combination provides an extremely lowpower latch with maximum interface flexibility. Data input rates of the MIC5800BN are greatly improved in these devices. With a 5V supply, they will typically operate at better than 5MHz. With a 12V supply, significantly higher speeds are obtained.The CMOS inputs are compatible with standard CMOS, PMOS, and NMOS circuits.

Parametrics

MIC5800BN absolute maxing ratings: (1)Output Voltage, VCE: 50V; (2)Supply Voltage, VDD: 15V; (3)Input Voltage Range, VIN: -0.3V to VDD+0.3V; (4)Continuous Collector Current, IC: 500mA; (5)Package Power Dissipation: Plastic DIP: 2.1W; SOIC: 1.0W; (6)Operating Temperature Range, TA: –40℃ to +85℃; (7)Storage Temperature Range, TS: –65℃ to +125℃.

Features

MIC5800BN features: (1)4.4MHz Minimum Data Input Rate; (2)High-Voltage, Current Sink Outputs; (3)Output Transient Protection; (4)CMOS, PMOS, NMOS, and TTL Compatible Inputs; (5)Internal Pull-Down Resistors; (6)Low-Power CMOS Latches.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

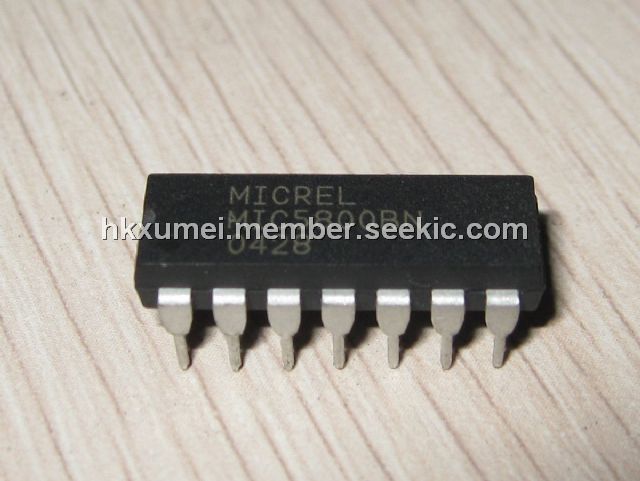

MIC5800BN
MIC5800BN

IC DRVR LATCH 4BIT PAR IN 14DIP
Data Sheet
Negotiable
