Product Summary
The OP177GS features the highest precision performance of any op amp currently available. Offset voltage of the OP177 is only 10mV max at room temperature and 20mV max over the full military temperature range of -55℃ to +125℃. The ultralow VOS of the OP177GS, combines with its exceptional offset voltage drift (TCVOS) of 0.1mV/℃ max, to eliminate the need for external VOS adjustment and increases system accuracy over temperature.
Parametrics
OP177GS absolute maximum ratings: (1)Supply Voltage: ±22V; (2)Internal Power Dissipation1: 500mW; (3)Differential Input Voltage: ±30V; (4)Input Voltage: ±22V; (5)Output Short-Circuit Duration: Indefinite; (6)Storage Temperature Range Z and RC Packages:-65℃C to +150℃; S, P Package: -65℃ to +125℃; (7)Operating Temperature Range: -40℃ to +85℃; (8)Lead Temperature Range (Soldering, 60 sec): +300℃; (9)DICE Junction Temperature (TJ): –65℃ to +150℃.
Features
OP177GS features: (1)Ultralow Offset Voltage: T=+25℃: 10μV max; -55℃≤TA≤+125℃: 20μV max; (2)Outstanding Offset Voltage Drift: 0.1μV/℃ max; (3)Excellent Open-Loop Gain and Gain Linearity: 12V/μV TYP; (4)CMRR: 130dB min; (5)PSRR: 120dB min; (6)Low Supply Current: 2.0mA max; (7)Fits Industry Standard Precision Op Amp Sockets(OP07/OP77).

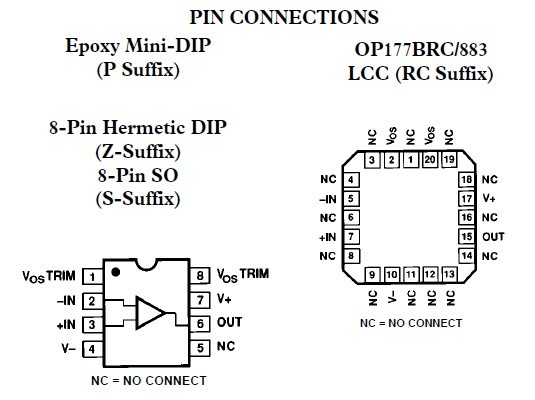

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 OP177GS |
|
IC OPAMP GP PREC LN 8SOIC |
Data Sheet |
|
|
||||||||||||||||||||
|
OP177GS-REEL |
|
IC OPAMP GP PREC LN 8SOIC |
Data Sheet |
|
|
||||||||||||||||||||
|
OP177GS-REEL7 |
|
IC OPAMP GP PREC LN 8SOIC |
Data Sheet |
Negotiable |
|
||||||||||||||||||||
|
OP177GSZ |
|
IC OPAMP GP PREC LN 8SOIC |
Data Sheet |
|
|
||||||||||||||||||||
|
OP177GSZ-REEL |
|
IC OPAMP GP PREC LN 8SOIC |
Data Sheet |
|
|
||||||||||||||||||||
|
OP177GSZ-REEL7 |
|
IC OPAMP GP PREC LN 8SOIC |
Data Sheet |
|
|
||||||||||||||||||||
