Product Summary
The PC87364-ICK/VLA a member of National Semiconductor 128-pin LPC SuperI/O family, introduces wake-up support for a wide range of wake-up events, and new hardware and sofware features to protect the system design. The PC87364-ICK/VLA provides support for 51 GPIO ports, many with Assert IRQ/SMI/PWUREQ capability. It is PC99 and ACPI compliant, and offers a single-chip solution to the most commonly used PC I/O peripherals. The PC87364-ICK/VLA also incorporates: Fan Speed Control and Monitor (FSCM) for three fans, a Floppy Disk Controller (FDC), a Keyboard and Mouse Controller (KBC), a full IEEE 1284 Parallel Port, two enhanced Serial Ports (UARTs), one with Infrared (IR) support, an ACCESS bus Interface (ACB), System Wake-Up Control (SWC), General-Purpose Input/Output (GPIO) support for 51 ports, Interrupt Serializer for Parallel IRQs and an enhanced WATCHDOG TM timer.
Parametrics
PC87364-ICK/VLA absolute maximum ratings: (1)VDD Supply Voltage: -0.5~+6.5 V; (2)VI Input Voltage: -0.5 VDD~+ 0.5 V; (3)VO Output Voltage: -0.5 VDD~+ 0.5 V; (4)TSTG Storage Temperature: -65~+165℃; (5)PD Power Dissipation: 1 W; (6)TL Lead Temperature Soldering (10 s): +260 ℃.
Features
PC87364-ICK/VLA features: (1)Extended Wake-Up; (2)51 General-Purpose I/O (GPIO) Ports; (3)Fan Speed Control and Fan Speed Monitor (FSCM); (4)Interrupt Serializer. 11 Parallel IRQs to Serial IRQ. IRQ sharing with internal IRQs; (5)Floppy Disk Controller (FDC); (6)Serial Port 2 with Infrared (UART2).

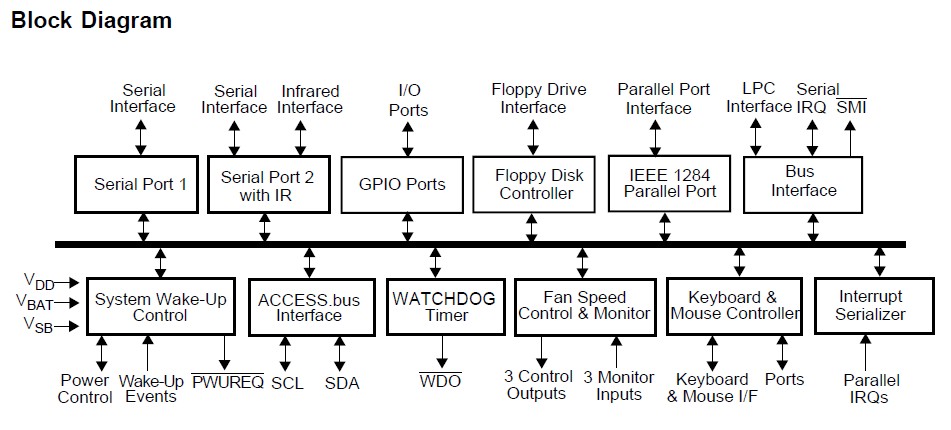

Diagrams
 |
