Product Summary

The SLVU28-8.TBT is a type of voltage suppressor which is designed to protect low voltage, state-of-the-art CMOS semiconductors from transients caused by electro-static discharge(ESD), cable discharge events(CDE), lighting and other induced voltage surges. The SLVU28-8.TBT is constructed using Semtech proprietary EPD process technology.

Parametrics

SLVU28-8.TBT maximum ratings: (1)Peak pulse power: 600W; (2)Peak pulse current: 30A; (3)ESD per IEC 61000-4-2(air): 30 kV; (4)ESD per IEC 61000-4-2(contact): 25 kV; (5)Operating temperature: -55 to +125℃; (6)Storage temperature: -55 to +150℃.

Features

SLVU28-8.TBT features: (1)600 W peak pulse power(tp=8/20μS); (2)Protects four line pairs(eight lines); (3)Comprehensive pin out for easy board layout; (4)Low capacitance; (5)High peak pulse current(30A. 8/20μS); (6)Low leakage current; (7)Low operating and clamping volatge; (8)Soild-state EPD TVS process technology.

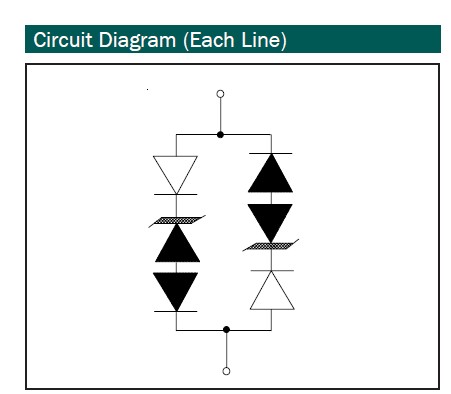

Diagrams

SLVU030
SLVU030
Other

Data Sheet
Negotiable
SLVU2.8
SLVU2.8
Other

Data Sheet
Negotiable
SLVU2.8-4
SLVU2.8-4
Other

Data Sheet
Negotiable
SLVU2.8-4.TBT
SLVU2.8-4.TBT

IC TVS ARRAY 4-LINE 2.8V 8SOIC
Data Sheet
0-1: $2.11
1-25: $1.42
25-100: $1.22
SLVU2.8-4A1
SLVU2.8-4A1
STMicroelectronics
TVS Diode Arrays LV Ethernet Gig Protection 30A 1.5pF
Data Sheet
0-1: $1.75
1-10: $1.41
10-100: $1.27
100-250: $1.12
SLVU2.8-4BTG
SLVU2.8-4BTG
Littelfuse
TVS Diode Arrays 2.8V 1uA 4CH 30kV ESD Contact
Data Sheet
0-1: $1.05
1-25: $0.91
25-50: $0.70
50-100: $0.63
