Product Summary

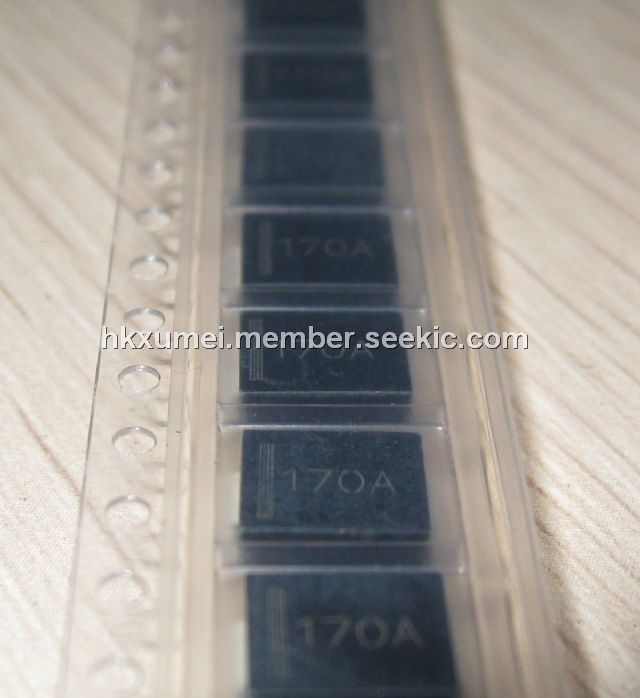

The SMLJ170A is available in samll outline surface mountable packages. It is designed to optimize board space. Packaged for use with surface mount technology automated assembly equipment, these parts of the SMLJ170A can be placed on printed circuit boards and ceramic substrates to protect sensitive components from transient voltage damage.
Parametrics
SMLJ170A absolute maxing ratings: (1)3000 watts of peak power dissipation(10×1000μs); (2)tclamping(0 volts to VBR min): less than 1×0.000000000001seconds(theoretical); (3)Forward surge rating: 200Amps, 1/120sec@25℃(Excluding Bidirectional);(4)Operating and storage temperature: -65℃ to +175℃.
Features
SMLJ170A features: (1)Unidirectional and bidirectional; (2)3000 watts peak power; (3)Voltage range: 5.0 to 170 volts; (4)Low inouctance; (5)Low profile package for surface mounting.

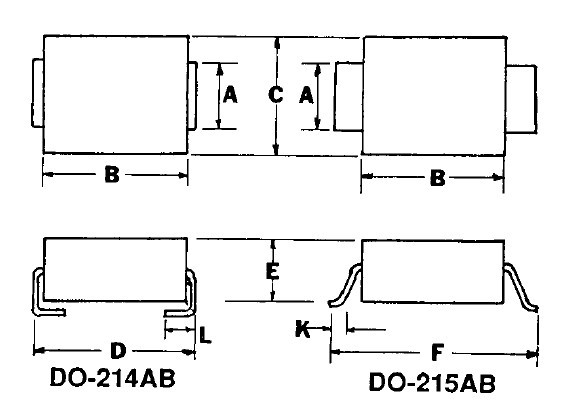

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SMLJ170A |
Bourns |
TVS Diodes - Transient Voltage Suppressors 170volts 5uA 11 Amps Uni-Dir |
Data Sheet |
|
|
||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||
|
SMLJ100CA |
Bourns |
TVS Diodes - Transient Voltage Suppressors 100volts 5uA 18.6 Amps Bi-Dir |
Data Sheet |
|
|
||||||||||
|
SMLJ10A-TP |
Micro Commercial Components (MCC) |
TVS Diodes - Transient Voltage Suppressors 17V 3000W 176.4A |
Data Sheet |
|
|
||||||||||
|
SMLJ12CA |
Bourns |
TVS Diodes - Transient Voltage Suppressors 12volts 5uA 150.6 Amps Bi-Dir |
Data Sheet |
|
|
||||||||||
|
SMLJ130A |
Bourns |
TVS Diodes - Transient Voltage Suppressors 130volts 5uA 14.4 Amps Uni-Dir |
Data Sheet |
|
|
||||||||||
|
SMLJ13CA |
Bourns |
TVS Diodes - Transient Voltage Suppressors 13volts 5uA 139.4 Amps Bi-Dir |
Data Sheet |
|
|
||||||||||
|
SMLJ170A |
Bourns |
TVS Diodes - Transient Voltage Suppressors 170volts 5uA 11 Amps Uni-Dir |
Data Sheet |
|
|
||||||||||
