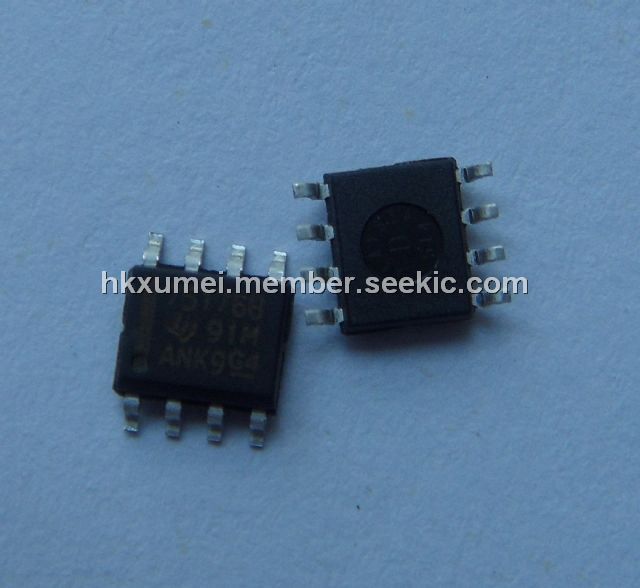

SN75176BDR

Product Summary

The SN75176BDR differential bus transceiver is a integrated circuit, which is designed for bidirectional data communication on multipoint bus transmission lines. It is designed for balanced transmission lines and meet ANSI Standards TIA/EIA-422-B and TIA/EIA-485-A and ITU Recommendations V.11 and X.27. The SN75176BDR combines a 3-state differential line driver and a differential input line receiver, both of which operate from a single 5-V power supply. The driver and receiver have active-high and active-low enables, respectively, that can be connected together externally to function as a direction control. The driver differential outputs and the receiver differential inputs of SN75176BDR are connected internally to form differential input/output (I/O) bus ports that are designed to offer minimum loading to the bus when the driver is disabled or VCC = 0. These ports feature wide positive and negative common-mode voltage ranges, making the device suitable for party-line applications.

Parametrics

SN75176BDR absolute maximum ratings: (1)Supply voltage, VCC: 7 V; (2)Voltage range at any bus terminal: –10 V to 15 V; (3)Enable input voltage, VI: 5.5 V; (4)Package thermal impedance, θJA: D package: 97℃/W, P package: 85℃/W, PS package: 95℃/W; (5)Operating virtual junction temperature, TJ: 150℃; (6)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃; (7)Storage temperature range, Tstg: –65℃ to 150℃.

Features

SN75176BDR features: (1)Bidirectional Transceivers; (2)Meet or Exceed the Requirements of ANSI Standards TIA/EIA-422-B and TIA/EIA-485-A and ITU Recommendations V.11 and X.27; (3)Designed for Multipoint Transmission on Long Bus Lines in Noisy Environments; (4)3-State Driver and Receiver Outputs; (5)Individual Driver and Receiver Enables; (6)Wide Positive and Negative Input/Output Bus Voltage Ranges; (7)Driver Output Capability: ±60 mA Max; (8)Thermal Shutdown Protection; (9)Driver Positive and Negative Current Limiting; (10)Receiver Input Impedance: 12 kΩ Min; (11)Receiver Input Sensitivity: ±200 mV; (12)Receiver Input Hysteresis: 50 mV Typ; (13)Operate From Single 5-V Supply.

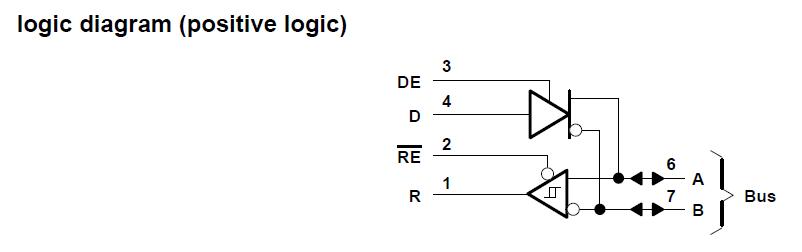

Diagrams
