Product Summary
The TIM3742-16SL-341 is a microwave power GaAs FET.
Parametrics
TIM3742-16SL-341 absolute maximum ratings: (1)Drain-Source Voltage, VDS: 15V; (2)Gate-Source Voltage, VGS: -5V; (3)Drain Current, IDS: 13.0A; (4)Total Power Dissipation (Tc= 25℃), PT: 75.0W; (5)Channel Temperature, Tch: 175℃; (6)Storage Temperature, Tstg: -65 to +175℃.
Features
TIM3742-16SL-341 features: (1)low intermodulation distortion: IM3=-45 dBc at Pout= 31.5dBm Single Carrier Level; (2)high power P1dB=42.5dBm at 3.3GHz to 3.6GHz; (3)high gain G1dB=10.0dB at 3.3GHz to 3.6GHz; (4)broad band internally matched FET; (5)hermetically sealed package.

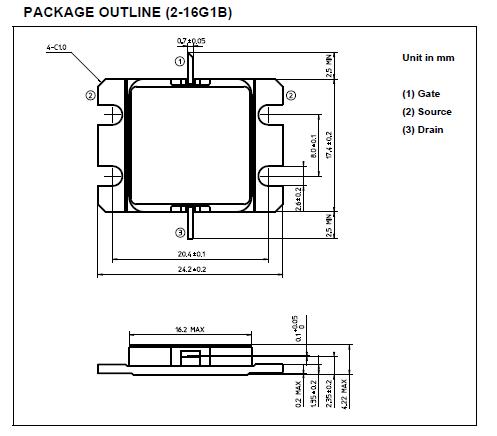

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 TIM3742-16SL-341 |
Other |
|
Data Sheet |
Negotiable |
|
||||
