Product Summary
The XPC860DECZP50D4 is a Quad Integrated Communications Controller. It is designed for a variety of controller applications.
Parametrics
Absolute maximum ratings: (1)Supply Voltage: VDDH:–0.3V to 4.0V, VDDL:–0.3V to 4.0V, KAPWR:–0.3V to 4.0V, VDDSYN:–0.3V to 4.0V; (2)Input Voltage:GND–0.3V to VDDH; (3)Temperature(standard): TA(min):0℃ ,Tj(max):95℃; (4)Temperature(Extended):TA(min):–40℃, Tj(max):95℃; (5)Storage Temperature Range:–55℃ to 150℃.
Features
Features: (1)Instruction and data caches are two-way, set-associative, physically addressed, LRU replacement, and lockable on-line granularity; (2)MMUs with 32-entry TLB, fully associative instruction, and data TLBs; (3)MMUs support multiple page sizes of 4, 16, and 512 Kbytes, and 8 Mbytes; 16 virtual address spaces and 16 protection groups; (4)Advanced on-chip-emulation debug mode; (5)Up to 32-bit data bus; (6)32 address lines; (7)Operates at up to 80 MHz; (8)Memory controller (eight banks); (9)Four 16-bit timers or two 32-bit timers ; (10)Gate mode can enable/disable counting; (11)Interrupt can be masked on reference match and event capture.

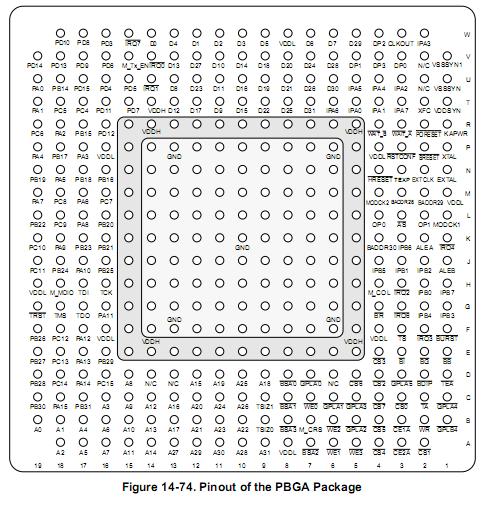

Diagrams
 |
