Product Summary

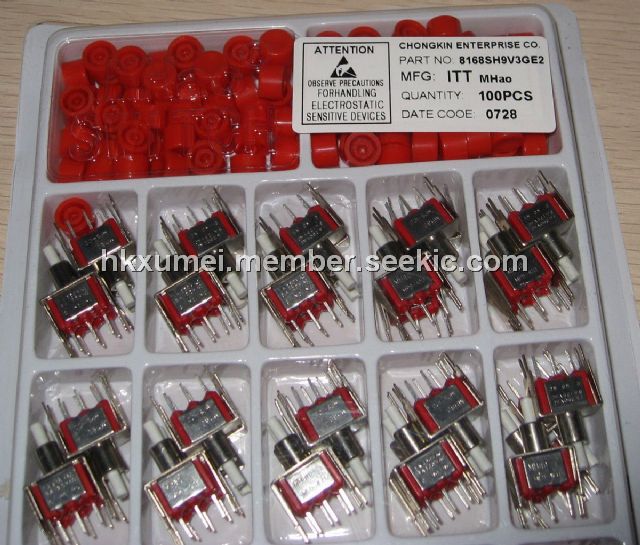

The 8168SH9V3GE2 is a alternate action and momentary pushbutton switch. Applications include: Instrumentation; Computers and peripherals; Telecommunications and networking equipment.

Parametrics

8168SH9V3GE2 specifications: (1)Contact rating: Q contact material: 6 AMPS @ 120 V AC or 28 V DC; 3 AMPS @ 250 V AC. See page A-57 for additional ratings; (2)Electrical life: 50,000 make-and-break cycles at full load; (3)Contact resistance: Below 20 mΩtyp. initial @ 2-4 V DC, 100 mA, for both silver and gold plated contacts; (4)Insulation resistance: 1000000000Ω min; (5)Dielectric strength: 1,000 Vrms min. @ sea level.; (6)Operating temperature: -30℃ to 65℃; (7)Solderability: Per MIL-STD-202F method 208D, or EIA RS-186E method 9 (1 hour steam aging); (8)Cap installation force: 10 lbs. maximum permissible.

Features

8168SH9V3GE2 features: (1)Long travel; (2)Available with LED; (3)Long life contact design; (4)Epoxy terminial seal compatabile with bottom wash cleaning; (5)RoHS compliant models available.

Diagrams

8168SH9V3GE2 dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
8168SH9V3GE2
8168SH9V3GE2
C&K Components
Pushbutton Switches Pushbutton
Data Sheet
0-1: $4.79
1-25: $4.49
25-100: $4.26
100-250: $4.07
