Product Summary

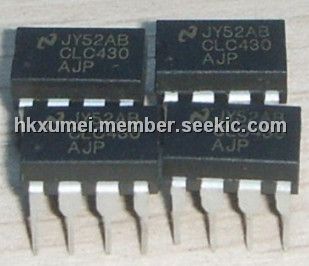

The CLC430AJ is a low-cost, wideband monolithic amplifier for general purpose applications. The CLC430AJ utilizes National patented current feedback circuit topology to provide an op amp with a slew rate of 2000V/ms, 100MHz unity-gain bandwidth and fast output disable function. The applications of CLC430AJ include: video distribution, CCD clock, driver, multimedia systems, DAC output buffers, imaging systems.
Parametrics
CLC430AJ maximum ratings: (1)supply voltage: ±16.5V; (2)short circuit current: (note 1); (3)common-mode input voltage: ±Vcc; (4)maximum junction temperature: +150℃; (5)storage temperature: -65℃ to+150℃; (6)lead temperature (soldering 10 sec): +300℃; (7)ESD rating (human body model): 4000V.
Features
CLC430AJ features: (1)0.1dB gain flatness to 20MHz (Av=+2); (2)100MHz bandwidth (Av=+1); (3)2000V/μs slew rate; (4)0.03%/0.05° differential gain/phase; (5)±5V, ±15V or single supplies; (6)100ns disable to high-impedance output; (7)Wide gain range; (8)Low cost.

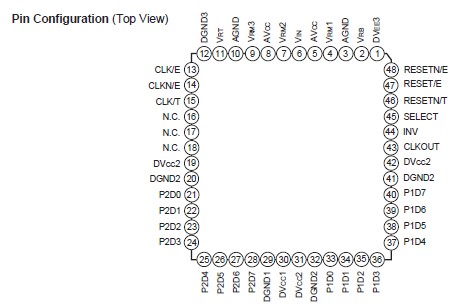

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 CLC430AJE |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
CLC402 |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
CLC404AJM5 |
National Semiconductor (VA) |
IC OP AMP HI SLEW WIDE SOT23-5 |
Data Sheet |
Negotiable |
|
||||
|
CLC405 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
CLC406 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
CLC406AJE |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
CLC406AJM5X |
|
IC OP AMP LOW PWR WIDE SOT23-5 |
Data Sheet |
Negotiable |
|
||||
