Product Summary
The CXA3026Q is an 8-bit high-speed flash A/D converter capable of digitizing analog signals at the maximum rate of 120MSPS. ECL, PECL or TTL can be selected as the digital input level in accordance with the application. The TTL digital output level of CXA3026Q allows 1: 2 demultiplexed output. The applications of CXA3026Q include: magnetic recording (PRML), communications (QPSK, QAM), LCDs, digital oscilloscopes.
Parametrics
CXA3026Q maximum ratings: (1)Supply voltage: 0.5 to +7.0 V, DVEE3= -7.0 to +0.5V; (2)Analog input voltage: VIN=VRT -2.7 to AVCC V; (3)Reference input voltage: VRT= 2.7 to AVCC V, VRB= VIN -2.7 to AVCC V, IVRT-VRB| =2.5 V; (4)Digital input voltage: DVEE3 to +0.5 V, -0.5 to DGND3 V, -0.5 to DVCC1 V, 2.7 V; (5)Storage temperature: Tstg= -65 to +150 ℃; (6)Allowable power dissipation: PD= 2 W.
Features
CXA3026Q features: (1)Differential linearity error: ±0.5LSB or less; (2)Integral linearity error: ±0.5LSB or less; (3)High-speed operation with a maximum conversion rate of 120MSPS; (4)Low input capacitance: 21pF; (5)Wide analog input bandwidth: 150MHz; (6)Low power consumption: 760mW; (7)Low error rate; (8)Excellent temperature characteristics; (9)1: 2 demultiplexed output; (10)1/2 frequency divided clock output (with reset function); (11)Compatible with ECL, PECL and TTL digital input levels; (12)Single +5V power supply operation available; (13)Surface mounting package.

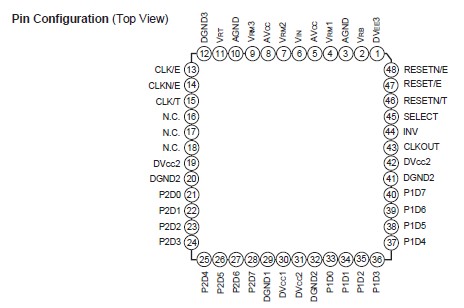

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

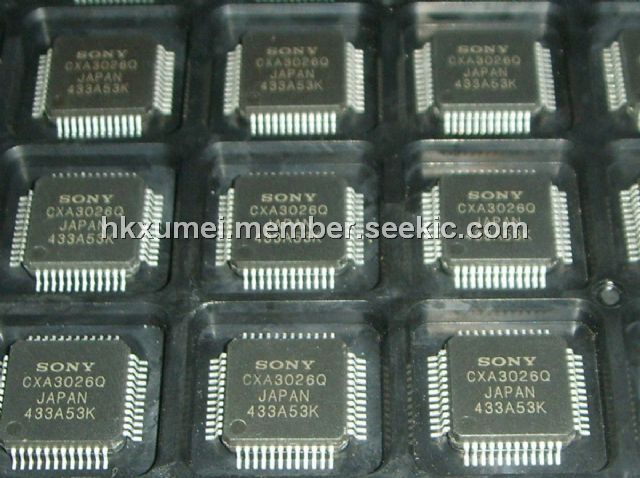

 CXA3026Q |
Other |
|
Data Sheet |
Negotiable |
|
||||
