Product Summary

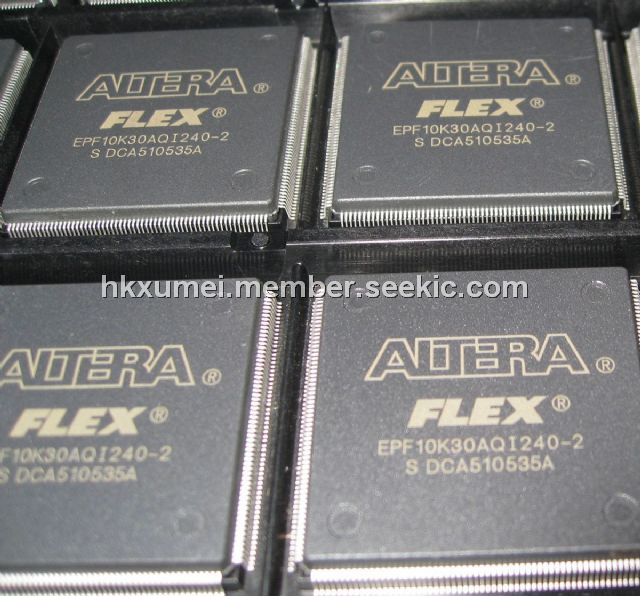

The EPF10K30AQI240-2 is a kind of PLD, which belongs to embedded programmable logic device family. Based on reconfigurable CMOS SRAM elements, the Flexible Logic Element MatriX (FLEX) architecture incorporates all features necessary to implement common gate array megafunctions. With up to 250,000 gates, the EPF10K30AQI240-2 provides the density, speed, and features to integrate entire systems, including multiple 32-bit buses, into a single device.
Parametrics
EPF10K30AQI240-2 maximum ratings: (1)Supply voltage With respect to ground (2): –2.0 to 7.0 V; (2)DC input voltage: –2.0 to 7.0 V; (3)DC output current, per pin: –25 to 25 mA; (4)Storage temperature No bias –65 150℃; (5)Ambient temperature Under bias: –65 to 135 ℃; (6)TJ Junction temperature Ceramic packages, under bias: 150℃; (7)PQFP, TQFP, RQFP, and BGA packages, under bias: 135℃.
Features
EPF10K30AQI240-2 features: (1)High density; (2)5.0-V tolerant input pins in FLEX 10KA devices; (3)Low power consumption (typical specification less than 0.5 mA; (4)in standby mode for most devices); (5)Devices are fabricated on advanced processes and operate with; (6)a 3.3-V or 5.0-V supply voltage; (7)Built-in low-skew clock distribution trees; (8)100% functional testing of all devices; test vectors or scan chains are not required.

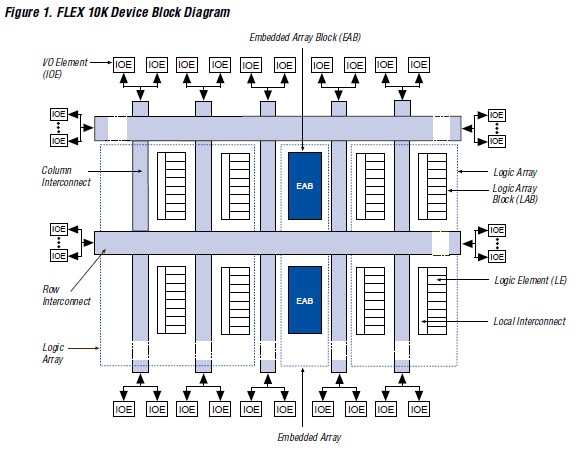

Diagrams
 |
