Product Summary

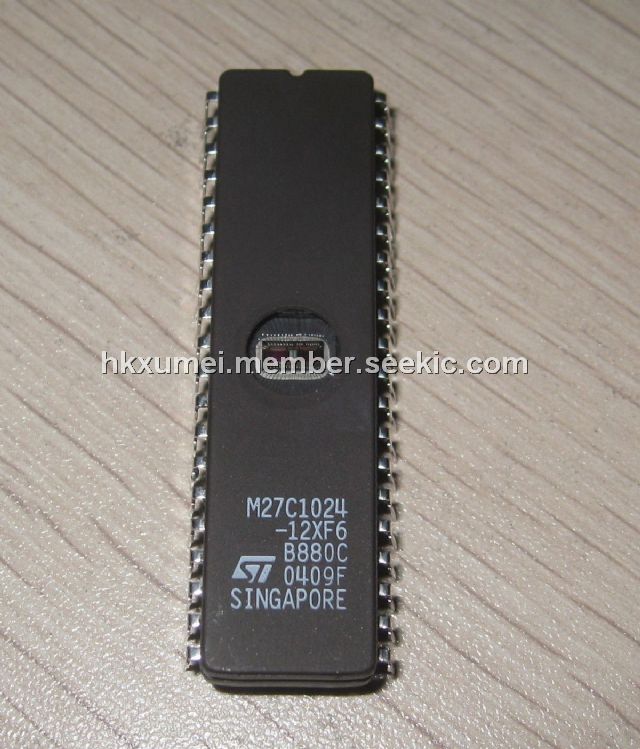

The M27C1024-12XF6 is a 1 Mbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable). It is ideally suited for microprocessor systems requiring large data or program storage and is organized as 65,536 words of 16 bits. The M27C1024-12XF6 (window ceramic frit-seal package) has a transparent lid which allows the user to expose the chip to ultraviolet light to erase the bit pattern.
Parametrics
M27C1024-12XF6 absolute maximum ratings: (1)TA Ambient Operating Temperature: –40 to 125 ℃; (2)TBIAS Temperature Under Bias: –50 to 125 ℃; (3)TSTG Storage Temperature: –65 to 150 ℃; (4)VIO Input or Output Voltages (except A9): –2 to 7 V; (5)VCC Supply Voltage: –2 to 7 V; (6)VA9 A9 Voltage: –2 to 13.5 V; (7)VPP Program Supply Voltage: –2 to 14 V.
Features
M27C1024-12XF6 features: (1)5v ± 10% supplyvoltagein read operation; (2)fast access time: 35ns; (3)low power consumption: active current 35mA at 5MHz; standby current 100μA; (4)programming voltage: 12.75v ± 0.25v; (5)programmingtime: 100μs/byte (typical); (6)electronic signature: manufacturer code: 0020h; device code: 008ch.
Diagrams
 |
