Product Summary

The FCA1210C105M-G2 is a non-inductive stacked metallized film capacitor which features large capacitance values in standard surface mount case sizes. The FCA1210C105M-G2 offers high capacitance values in standard surface mount case sizes. It excels in attenuating DC power bus noise, and as ripple filters in dc to dc power conversion circuits.

Parametrics

FCA1210C105M-G2 specifications: (1)Capacitance Range: 0.10μF to 1.0μF; (2)Capacitance Tolerance: ±20% @ 1 kHz and +20℃; (3)Rated Voltage: 16 Vdc [1.0μF in 1206 case, 10 Vdc]; (4)AC Voltage Rating: 12 Vrms; (5)Operating Temperature Range: -40℃ to +85℃; (6)Dissipation Factor: 0.015 @ 1 kHz and +20℃; (7)Dielectric Strength: 175% of rated voltage for 5 seconds; (8)Insulation Resistance (IR): After 1 minute @10 Vdc; +20℃ IR >1000 MΩ (C ≤0.33μF) IR > 300 MΩ.μF (C >0.33 μF); (9)Resistance to Soldering: The capacitor can withstand being heated in an oven at 235℃ for 200 seconds.

Features

FCA1210C105M-G2 features: (1)Smallest film chips; (2)No piezoelectric effect; (3)Non-polarized, non-magnetic; (4)Low ESR; (5)1.0 μF/10V in 1206 case.

Diagrams

FCA1210C105M-G2 typical application

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

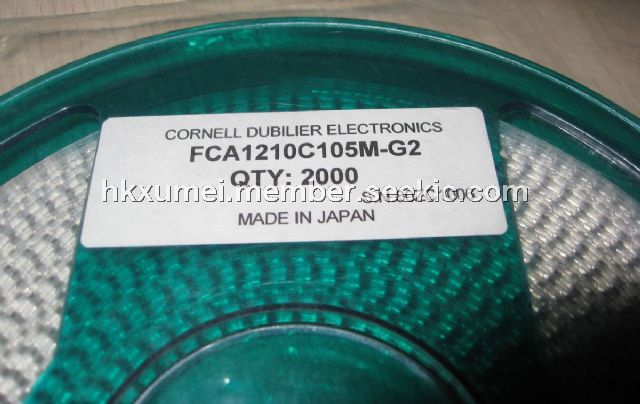

FCA1210C105M-G2
FCA1210C105M-G2
Cornell Dubilier
Film Capacitors 1.0UF 16V 20%
Data Sheet
0-1: $0.34
1-100: $0.24
100-500: $0.19
500-1000: $0.17
1000-2000: $0.15
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FCA1206C154M-H1
FCA1206C154M-H1
Cornell Dubilier
Film Capacitors .15UF 15V 20%
Data Sheet
0-1: $0.30
1-100: $0.22
100-500: $0.17
500-1000: $0.15
FCA1206C334M-H2
FCA1206C334M-H2
Cornell Dubilier
Film Capacitors .33UF 16V 20%
Data Sheet
0-1: $0.35
1-100: $0.25
100-500: $0.19
500-1000: $0.17
FCA1206C684M-H3
FCA1206C684M-H3
Cornell Dubilier
Film Capacitors .68UF 16V 20%
Data Sheet
0-1: $0.41
1-100: $0.31
100-500: $0.23
500-1000: $0.21
FCA12077_IRIS
FCA12077_IRIS

LENS ASSY 1POS 38MM RND 27.1MM
Data Sheet
0-90: $3.17
FCA1210C105M-G2
FCA1210C105M-G2
Cornell Dubilier
Film Capacitors 1.0UF 16V 20%
Data Sheet
0-1: $0.34
1-100: $0.24
100-500: $0.19
500-1000: $0.17
1000-2000: $0.15
FCA12104_IRIS
FCA12104_IRIS

LENS ASSY 1POS 38MM RND 27.1MM
Data Sheet
0-90: $3.17
