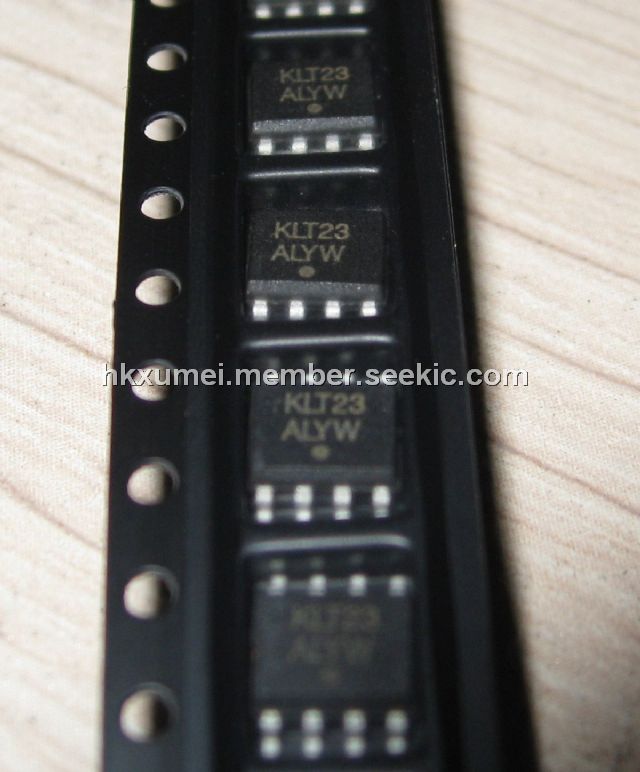

MC100ELT23D

Product Summary

The MC100ELT23D is a dual differential PECL to TTL translator. Because PECL (Positive ECL) levels are used, only +5 V and ground are required. The small outline 8-lead package and the dual gate design of the ELT23 makes it ideal for applications which require the translation of a clock and a data signal. The PECL inputs are differential; therefore, the MC100ELT23D can accept any standard differential PECL input referenced from a VCC of 5.0 V.

Parametrics

MC100ELT23D absolute maxing ratings: (1)On the condition of GND=0V, VCC Power Supply: 7V; (2)On the condition of GND=0V, V1≤VCC, VI Input Voltage: 0 to 6V; (3)TA Operating Temperature Range: -40 to +85℃; (4)Tstg Storage Temperature Range: -65 to +150℃; (5)On the conditions of 0lfpm, SOIC-8, θJA Thermal Resistance (Junction-to-Ambient): 190℃/W; On the conditions of 500lfpm, SOIC-8, θJA Thermal Resistance (Junction-to-Ambient): 130℃/W; (6)On the conditions of Standard Board, SOIC-8, θJC Thermal Resistance (Junction-to-Case): 41 to 44℃/W; (7)On the conditions of 0lfpm, TSSOP-8, θJA Thermal Resistance (Junction-to-Ambient): 185℃/W; On the conditions of 500lfpm, TSSOP-8, θJA Thermal Resistance (Junction-to-Ambient): 140℃/W; (8)On the conditions of Standard Board, TSSOP-8, θJC Thermal Resistance (Junction-to-Case): 41 to 44±5%℃/W; (9)On the conditions of 0lfpm, DFN8, θJA Thermal Resistance (Junction-to-Ambient): 129℃/W; On the conditions of 500lfpm, DFN8, θJA Thermal Resistance (Junction-to-Ambient): 84℃/W; ; (10)On the condition of <2 to 3 sec@248℃, Tsol Wave Solder Pb: 265℃; On the condition of <2 to 3 sec@260℃, Tsol Wave Solder Pb-Free: 265℃.

Features

MC100ELT23D features: (1)3.5 ns Typical Propagation Delay; (2)24 mA TTL Outputs; (3)Flow Through Pinouts; (4)The 100 Series Contains Temperature Compensation; (5)Operating Range VCC = 4.75 V to 5.25 V with GND = 0 V; (6)Internal Input 50 K Pulldown Resistors; (7)Q Output Will Default LOW with Inputs Left Open or < 1.3 V; (8)Pb-Free Packages are Available.

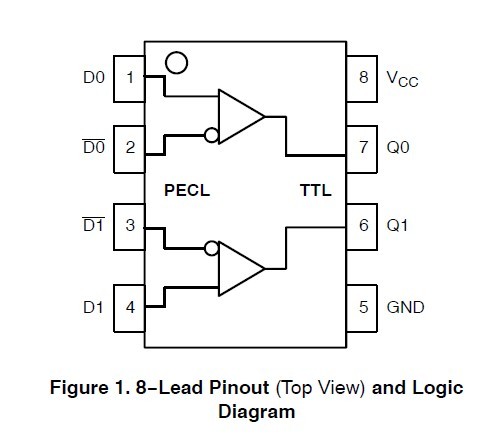

Diagrams
